Maximize 50% Storage Efficiency: High-Density VNA Racking System for Modern Logistics

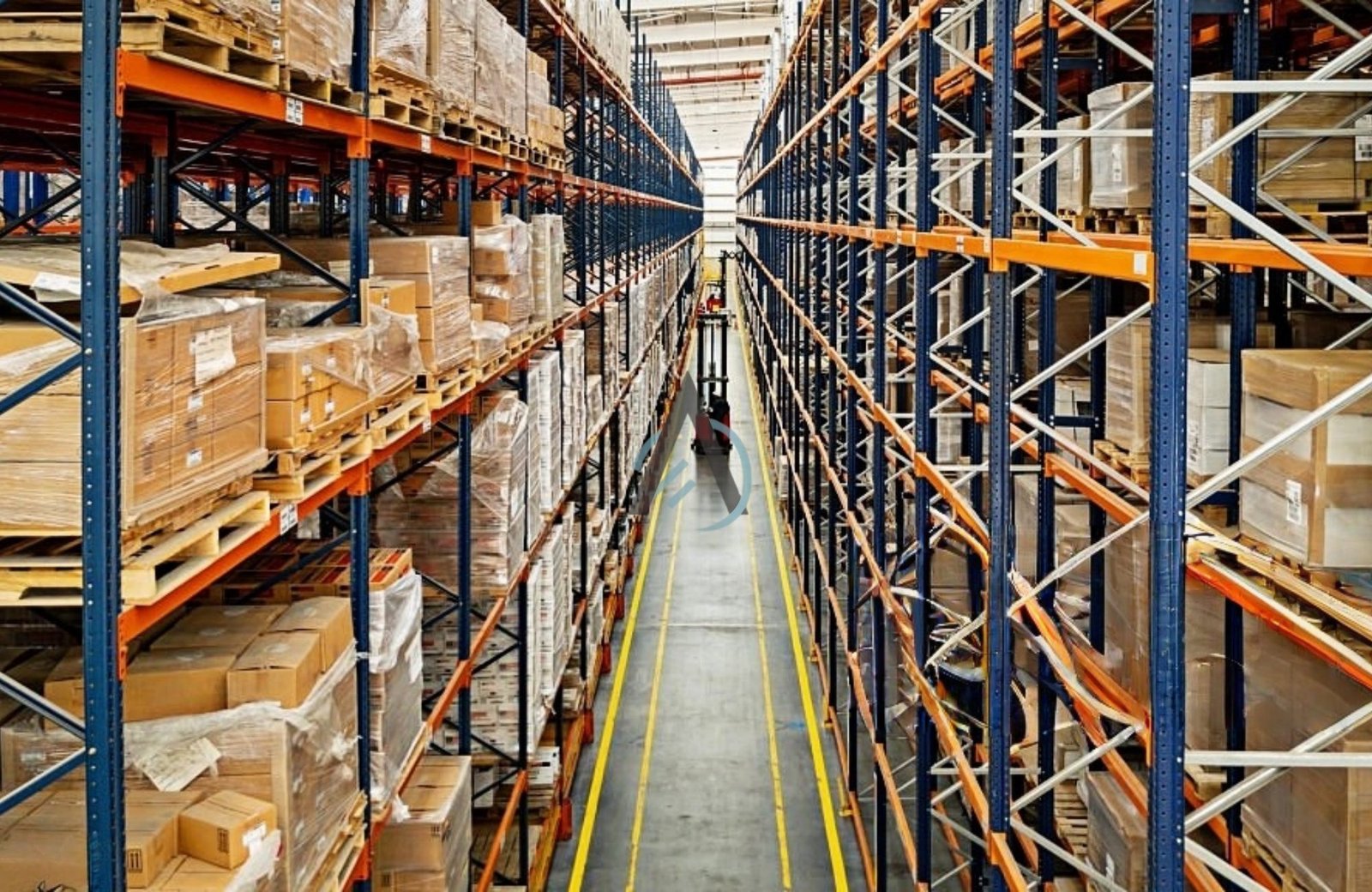

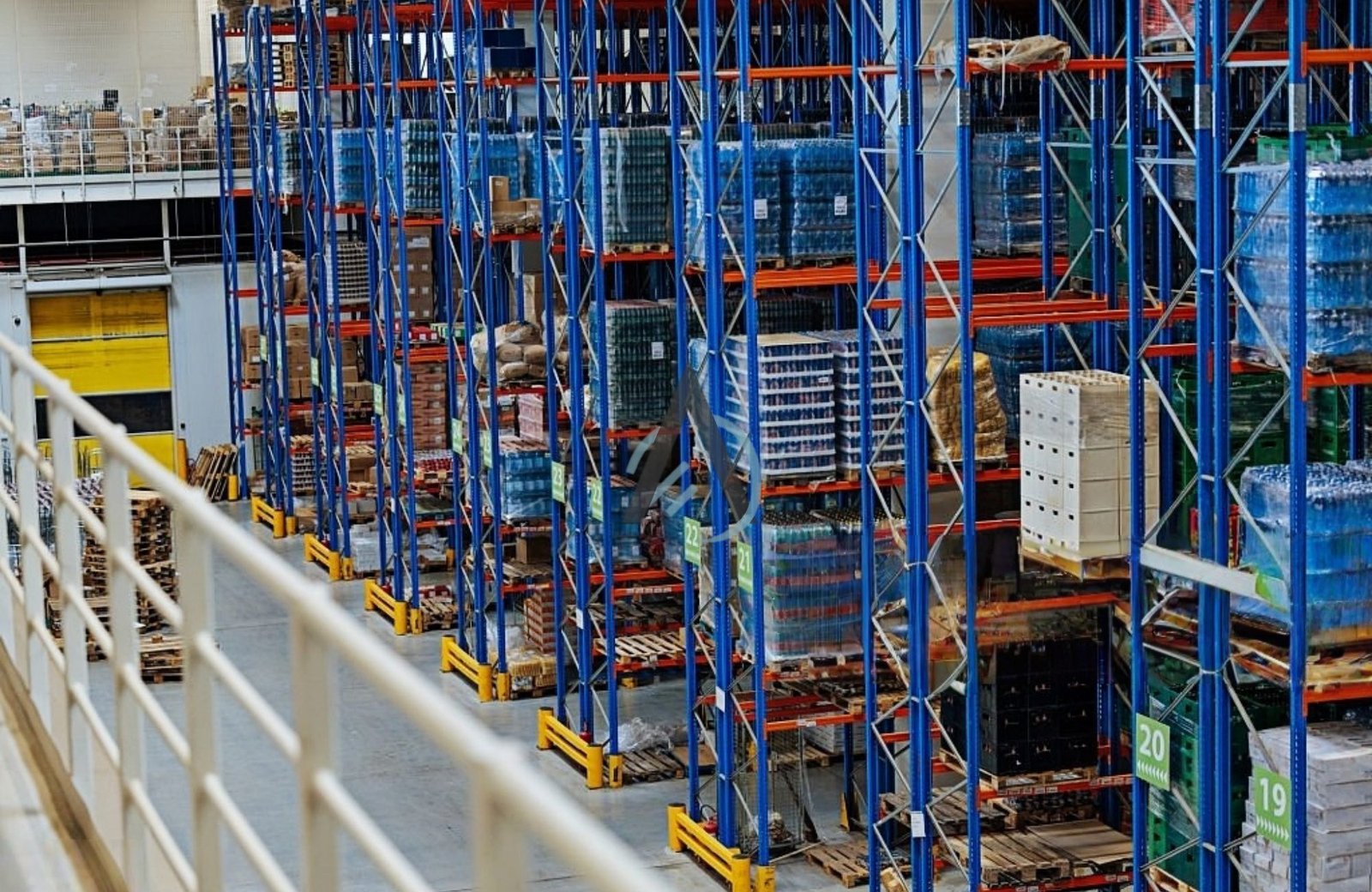

The VNA Racking (Very Narrow Aisle) is a space-optimized pallet storage solution precision-engineered for modern high-density warehouses and e-commerce distribution centers. By compressing operational aisles to as narrow as 1.6 meters, this system eliminates wasted floor space while providing high-stiffness structural support for pallet positions reaching heights of up to 15 meters.
This high-precision racking configuration is ideal for facilities where land costs are at a premium. It combines the extreme density of a block-stacking system with the 100% individual pallet accessibility of standard selective racking, ensuring maximum throughput speed without compromising on storage volume. The floor-anchored high-tensile steel frames are designed to withstand the dynamic forces of specialized three-way specialized forklifts, ensuring mission-critical stability in high-bay operations.
Core Competitive Advantages
- Maximized Floor Space Utilization: Reduces aisle widths to a precision range of 1.6m – 1.8m, effectively increasing warehouse storage capacity by 40% to 50% compared to traditional configurations.
- High-Position Structural Rigidity: Fabricated from high-tensile Q235B/Q355B structural steel, maintaining strict deflection control and seismic stability at heights exceeding 10 meters.
- Precision Guide Rail Options: Features high-alignment angle steel mechanical guide rails or electromagnetic wire guidance systems to ensure safe and rapid forklift navigation within narrow lanes.
- 100% Individual Pallet Accessibility: Ensures unhindered access to every SKU, supporting rapid-fire picking operations and optimized inventory management in high-turnover logistics hubs.
Key Technical Specifications
| Technical Parameter | Engineering Specification |
|---|---|
| System Type | Very Narrow Aisle (VNA) Pallet Racking |
| Aisle Width Range | 1600 mm – 1800 mm (Ultra-Narrow Optimization) |
| Maximum Frame Height | Up to 15,000 mm (High-Bay Industrial Extension) |
| Load Capacity per Level | 1000 kg – 4000 kg (Per Pair of Beams) |
| Guide Rail Specifications | Angle Steel (50*50 / 100*10) or Magnetic Guidance Ready |
| Material & Certification | High-Tensile Q235B / Q355B Steel (CE & ISO9001 Certified) |
Optimize your vertical volume and operational safety today. Contact our engineering team for a customized VNA Racking System layout and factory-direct project quote.
