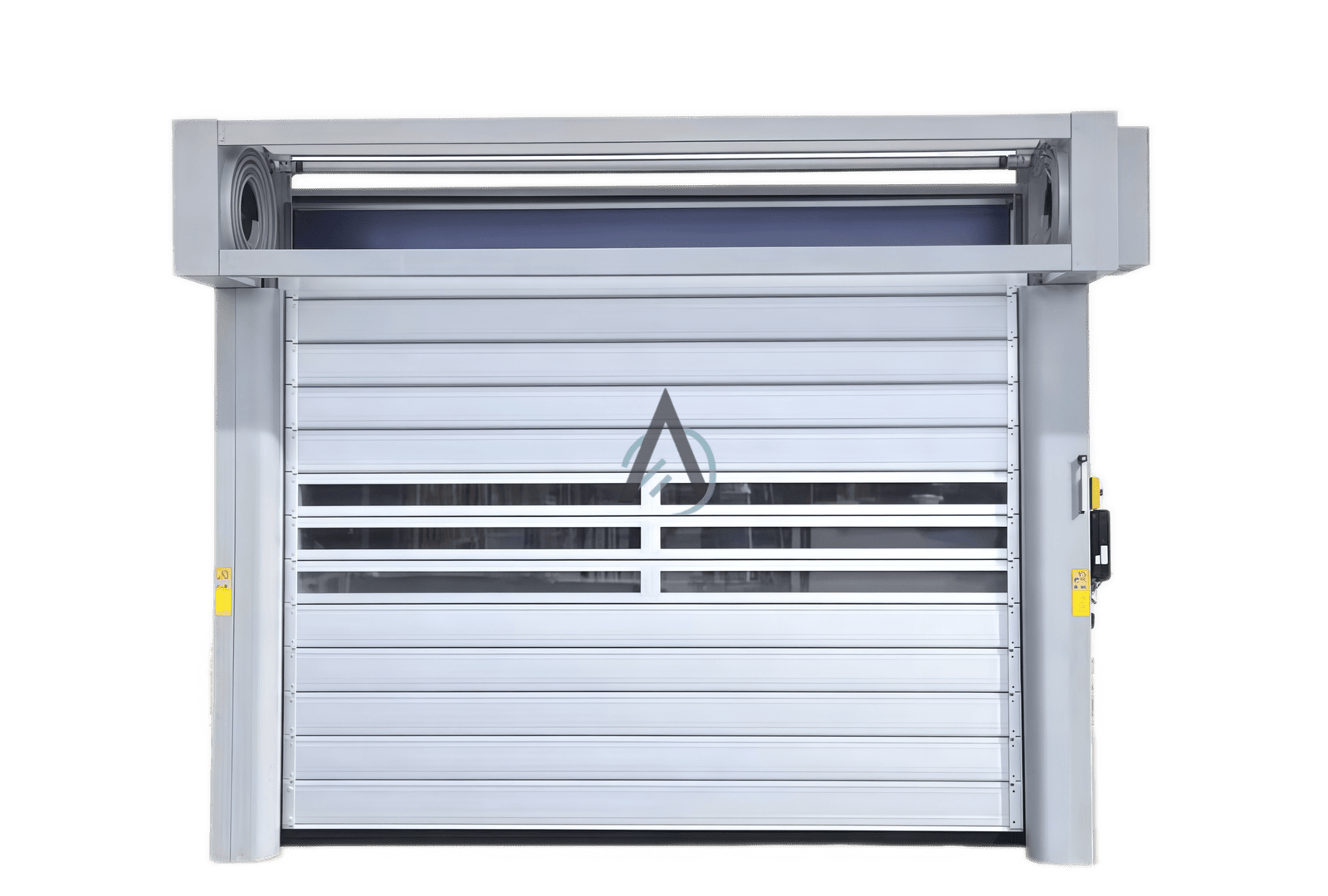

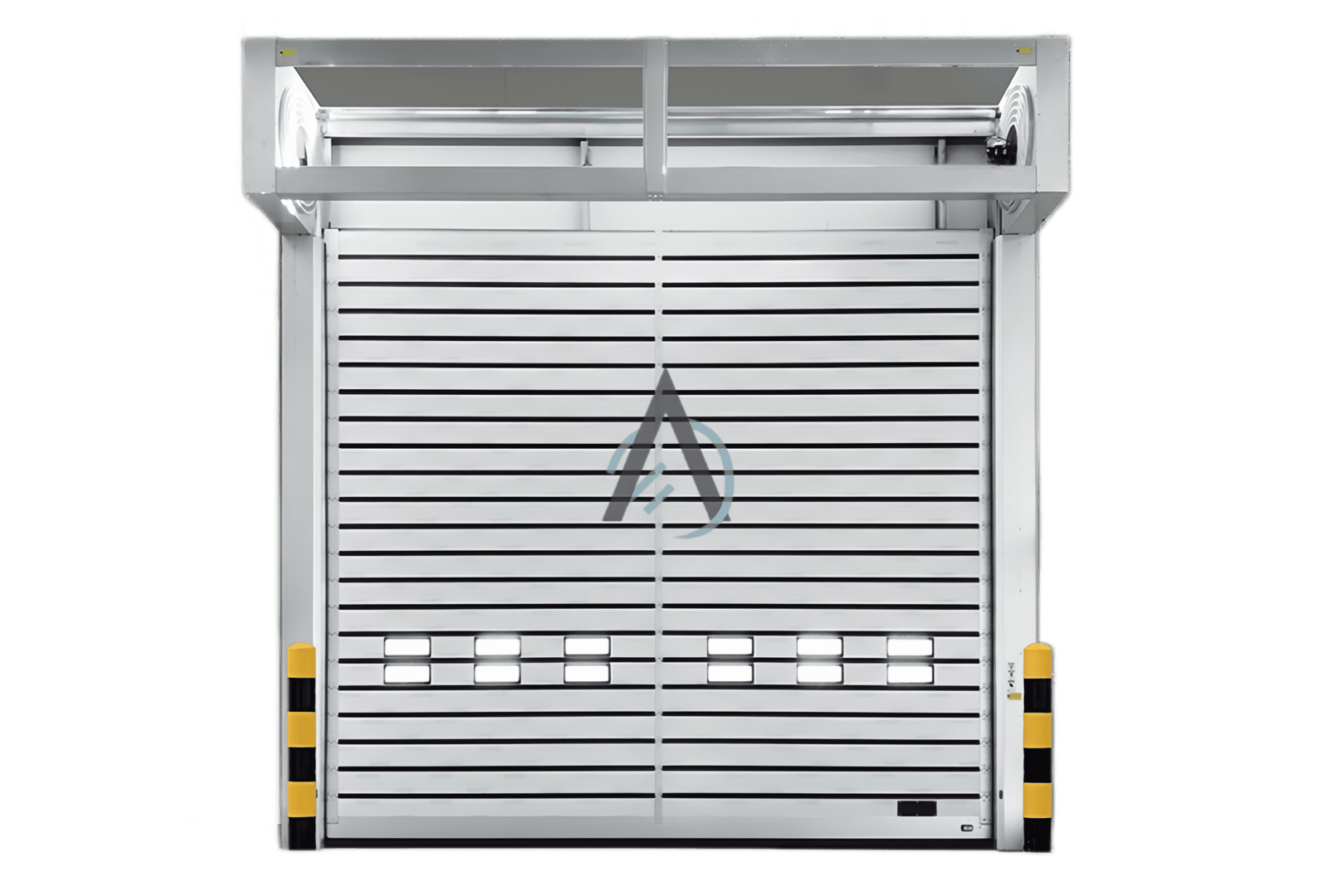

Hard Turbo Rolling Door

Aqua Route Hard Turbo Rolling Door (Rigid Turbo Door) is a high-speed, high-security industrial solution. It features high-strength aluminum alloy panels and a spiral turbine track for non-contact, quiet, and lightning-fast operation.
Key Features
·Lightning Speed : Opening speed up to 2.0m/s with a smooth, frictionless spiral track.
·Superior Security : Double-layer aluminum panels provide anti-theft and anti-impact protection.
·Extreme Durability : Designed for 150,000+ annual cycles with minimal maintenance.
·Excellent Insulation : PU foam-filled panels with EPDM seals for wind and thermal control.

High-Speed Security: Precision-Engineered Hard Turbo Rolling Door for Industrial Throughput

The Hard Turbo Rolling Door is a high-cycle industrial solution designed for mission-critical access points requiring both rapid operation and maximum physical security. Featuring high-strength aluminum alloy panels and a non-contact spiral track, this system enables lightning-fast opening speeds while maintaining a robust barrier against forced entry and environmental elements.

Core Competitive Advantages

High-Speed Throughput: Reaches opening speeds of up to 2.0m/s via a frictionless spiral turbine track, minimizing logistical wait times.
Reinforced Physical Security: Double-layer aluminum alloy panels provide high-impact protection and anti-theft capabilities for factory perimeters.
High-Cycle Reliability: Engineered for heavy-duty 150,000+ annual cycles with a precision-aligned drive system for minimal maintenance.
Wind-Resistant Sealing: PU foam-filled panels combined with perimeter EPDM seals ensure stability under high wind loads and pressure differentials.

Key Technical Specifications

Technical Parameter	Engineering Standard
Opening Speed	Up to 2.0 m/s
Standard Cycle Life	150,000+ Annual Cycles
Panel Material	High-Strength Aluminum Alloy (PU Injected)
Guidance Track	Non-contact Spiral Turbine
Safety Measures	Light Curtains / Wireless Safety Edges

Secure your high-frequency access points today. Contact our engineering team for a factory-direct quote and customized dimensions.

Technical Specs

Door panel material	Aluminum alloy 0.7mm–1.5mm Internally filled with polyurethane foam insulation (41–43mm thickness)
Door frame material	Galvanized steel door frames or cold-rolled steel electrostatic spraying
Wind-resistant material	Aluminum alloy wind-resistant ribs, segmented connection, easy to replace.
Safety system	Photoelectric protection (standard) Wireless bottom protection (standard) Infrared sensor protection (optional)
Motor control system	Servo motor: low noise, high efficiency, and a safety factor of 1.3 or higher. Microcomputer frequency conversion speed regulation ensures smoother door operation.
Wind resistance	12 m/s
Running speed	1.0–2.0 m/s

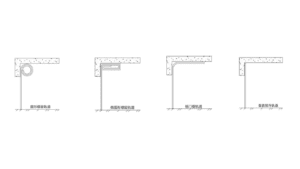

Installtion Mode

Scope of Application

Scope of Application	Type	Description
General Use	Circular Spiral Tracks	Circular spiral tracks are the standard design specification and are the best solution when there is sufficient space above.
Limited Space	Elliptical Spiral Tracks	Elliptical spiral tracks are a space-saving design structure used when building space is limited.
Safety Critical Areas	Low Headroom Track	The Low Headroom Track design ensures maximum safety for people and vehicles, such as in underground parking lots and garages.
Limited Depth	Vertical Lifting Tracks	Vertical lifting tracks are the best solution when the interior depth is limited but there is enough space above the door.

FAQ

`Q1: When should I choose a High-Speed Door instead of a Sectional Door?`

 A: High-speed doors (cycling at 1.5-2m/s) are ideal for high-traffic internal areas where minimizing temperature loss between zones is critical. Sectional doors provide superior insulation and security for external warehouse perimeters with lower traffic frequency.

`Q2: Are your doors tested for wind resistance?`

 A: Yes. Reinforced aluminum ribs make our doors suitable for coastal locations and large openings subject to high wind pressure.

`Q3: What is the cycle life of your industrial doors?`

 A: Servo motors and springs are rated for 50,000-100,000 cycles — equivalent to 10-20 years at 15 cycles per day in a typical industrial environment.

`Q4: Do you offer custom sizes for industrial doors?`

A: Yes. OEM services for custom widths and heights are available to meet your facility's architectural requirements.

Additional information

Brand	Aqua Route
Opening Speed	Up to 2.0 m/s
Panel Material	Aluminum Alloy (Double-layer)
Insulation Core	PU Foam
Durability	> 150,000 cycles/year

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Hard Turbo Rolling Door”

Get a Quote – Aqua Route

Quote Request Form

Tell Us About Your Project

Our team will prepare a complete factory-direct quote including specifications, pricing, lead time, and shipping options.

Hard Turbo Rolling Door

High-Speed Security: Precision-Engineered Hard Turbo Rolling Door for Industrial Throughput

Core Competitive Advantages

Key Technical Specifications

Q1: When should I choose a High-Speed Door instead of a Sectional Door?

Q2: Are your doors tested for wind resistance?

Q3: What is the cycle life of your industrial doors?

Q4: Do you offer custom sizes for industrial doors?

Reviews

Related products

Industrial Sectional Door

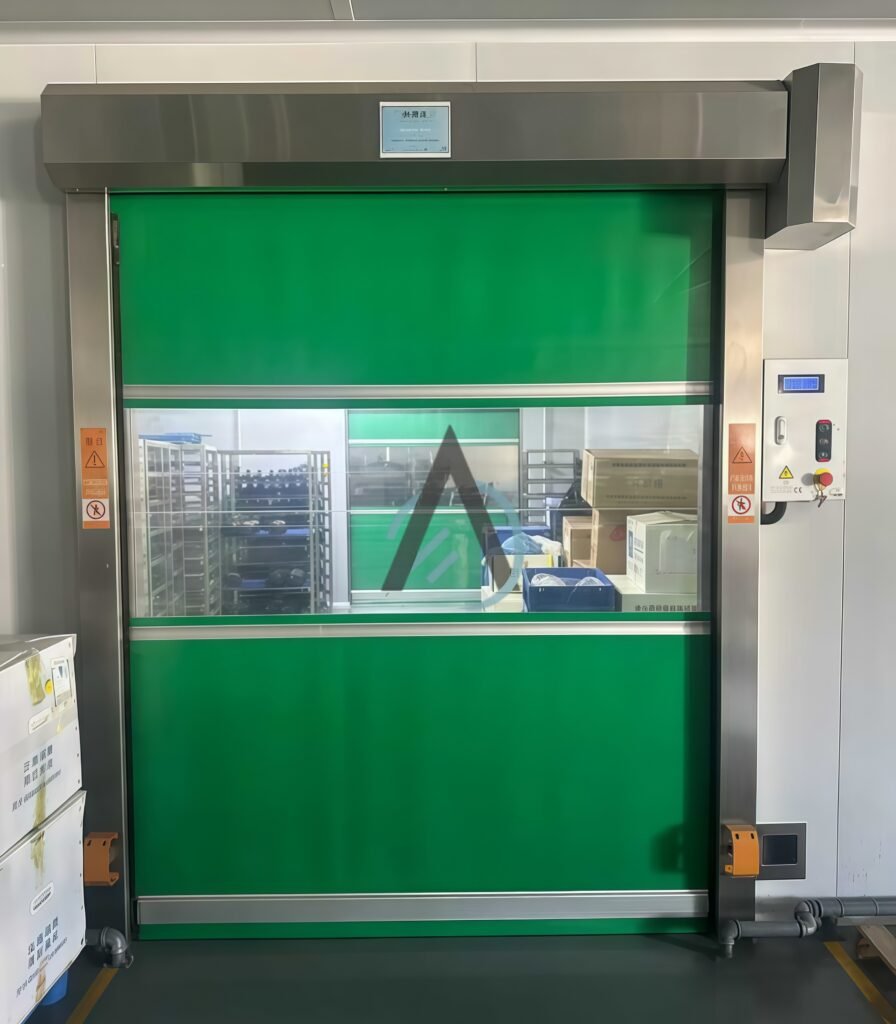

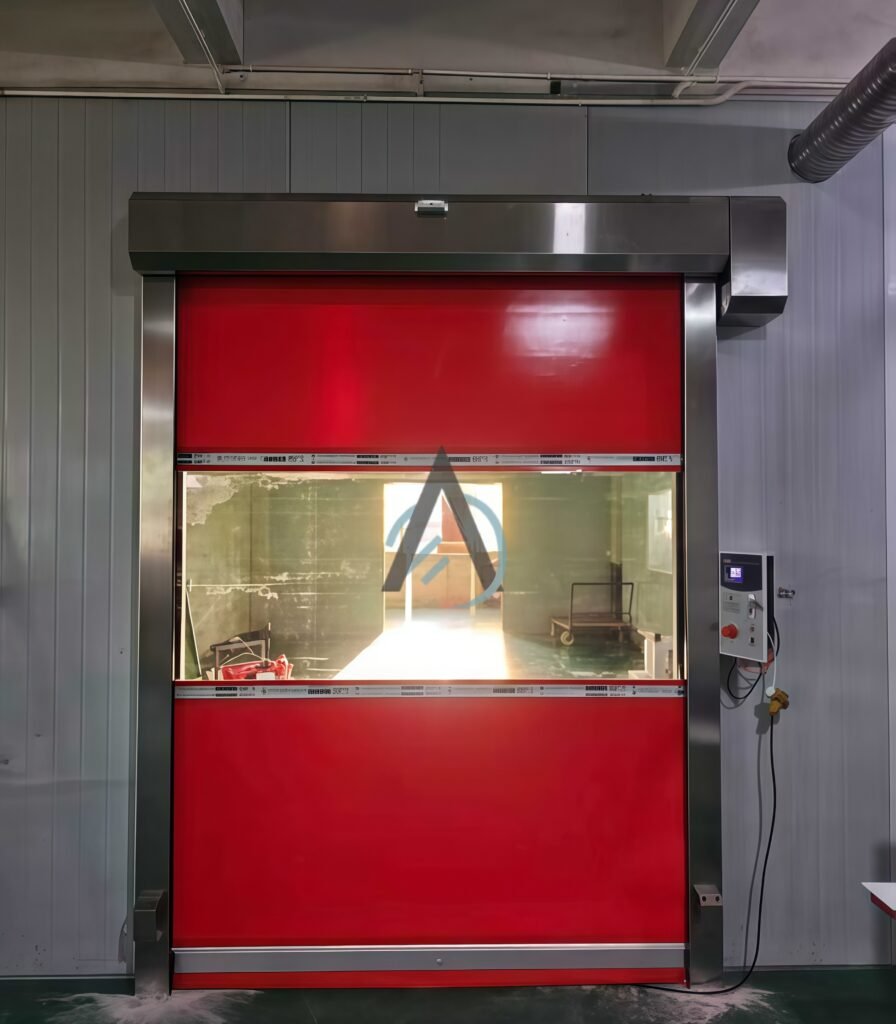

PVC High-Speed Door
