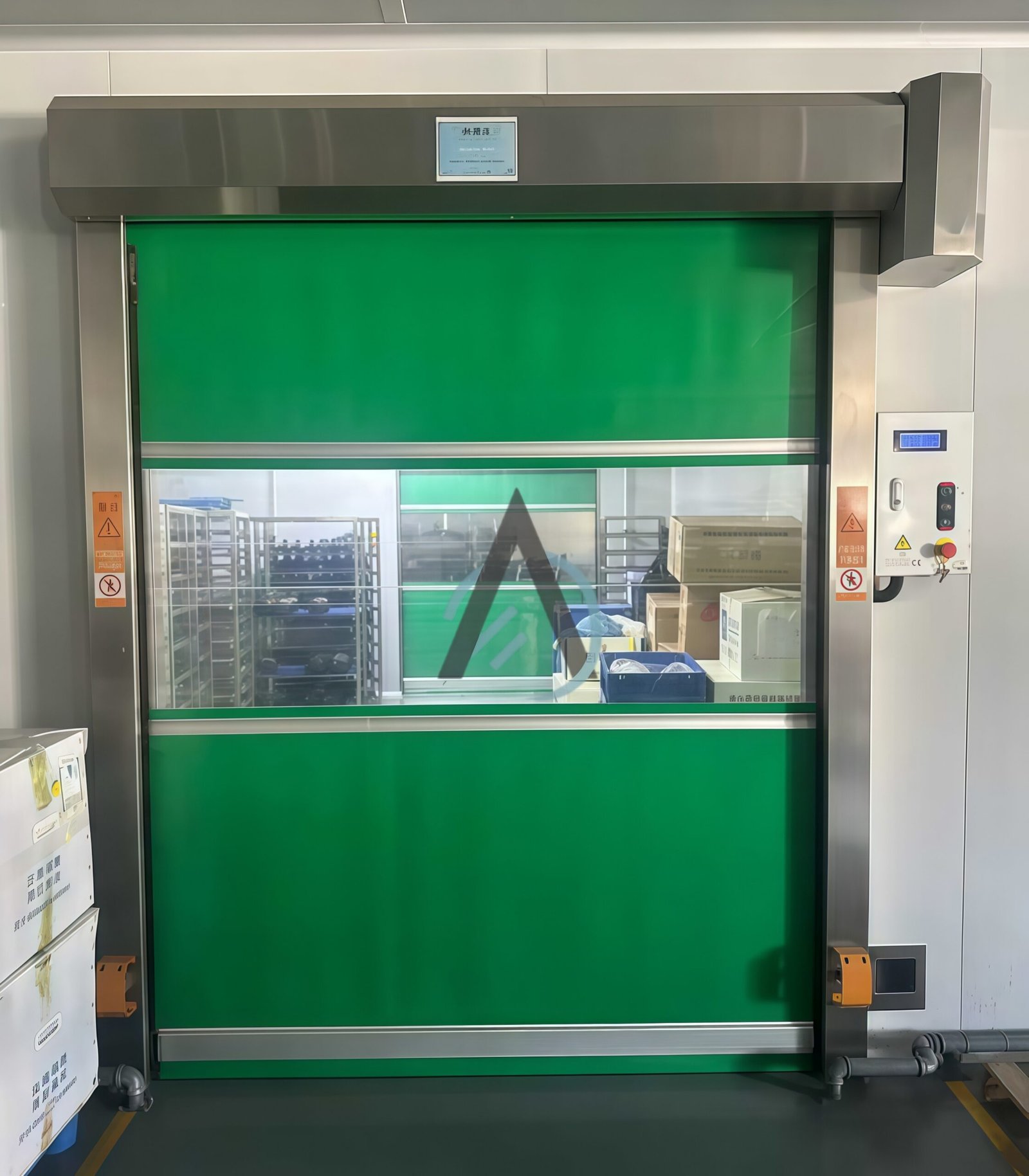

PVC High-speed roll-up door for cleanroom and warehouse isolation

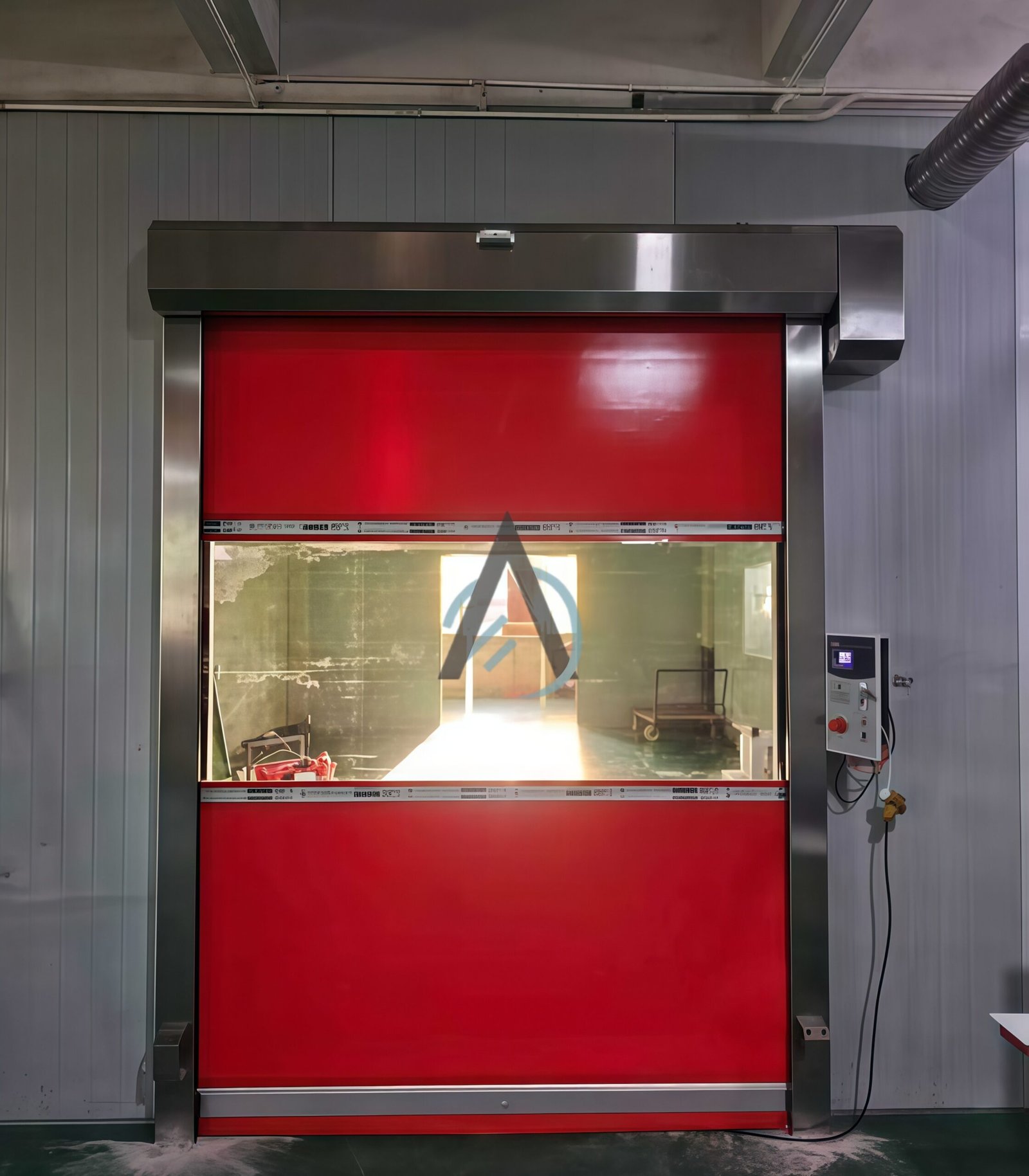

Rapid PVC High-speed door with safety sensors for frequent transit areas

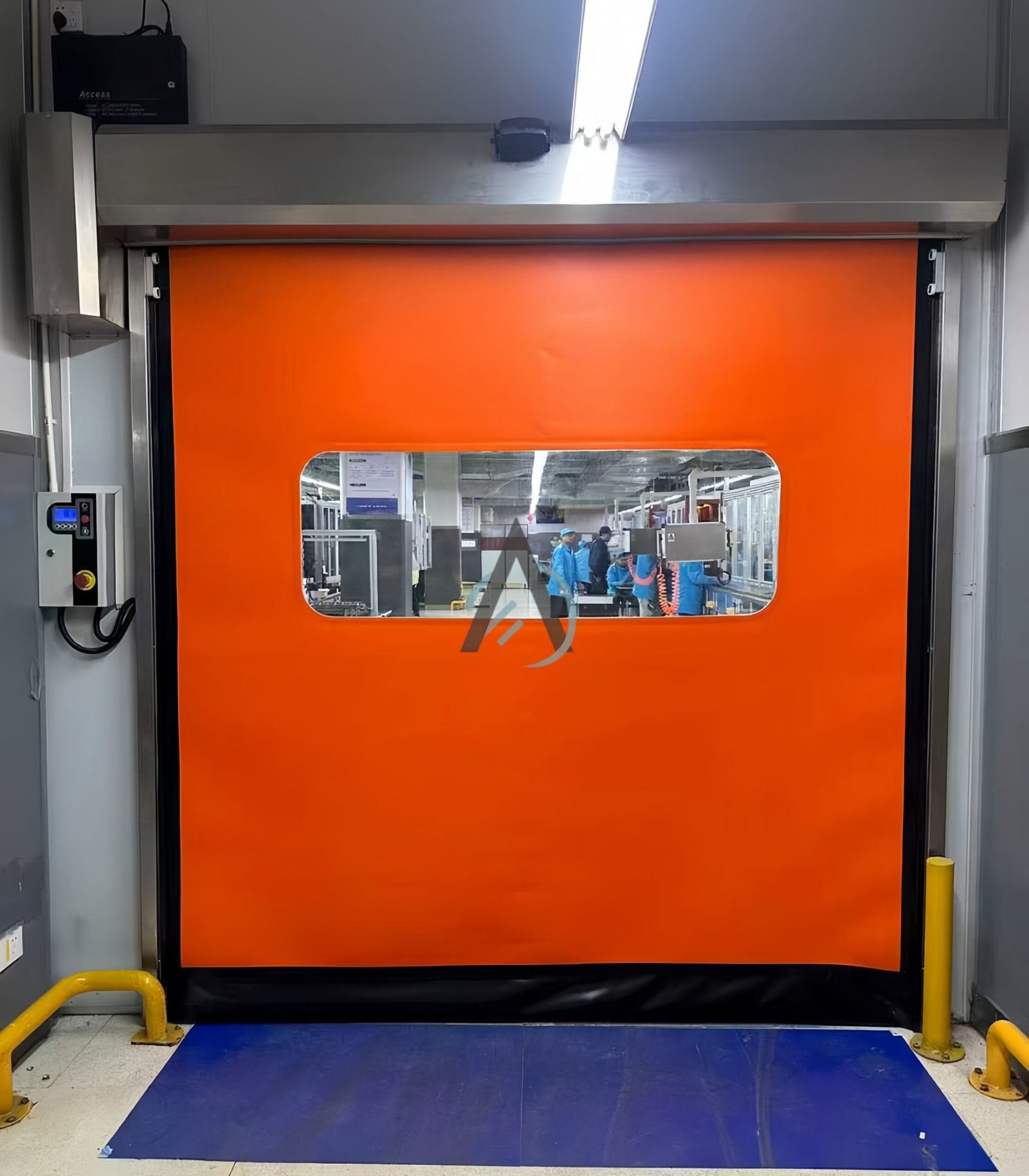

PVC High-speed door installation in food grade production facility
Click to enlarge
PVC High-speed roll-up door for cleanroom and warehouse isolation
Rapid PVC High-speed door with safety sensors for frequent transit areas
PVC High-speed door installation in food grade production facility

PVC High-Speed Door

Aqua Route PVC High-Speed Door is designed for high-traffic industrial environments where speed and frequency are critical. Featuring a lightweight yet durable PVC curtain and an advanced frequency-drive motor, it ensures seamless logistics flow while maintaining strict environmental separation.
Key Features
·Rapid Operation : Opening speeds up to 2.0m/s reduce wait times and minimize air exchange.
·Flexible & Durable : High-density PVC fabric with wind-resistant ribs for heavy-duty daily use.
·Superior Safety : Standard infrared sensors and wireless safety edges prevent accidental impacts.
·Energy Saving: Effectively blocks dust, insects, and noise while maintaining indoor temperature.

SKU: AR-DOOR-PVC-HS-01 Category: Tags: , , , , , , , , ,

Seamless Logistics Flow: High-Cycle PVC High-Speed Door for Environmental Control

The PVC High-Speed Door is mission-critical for high-traffic industrial zones where environmental separation and rapid passage are vital. Utilizing a high-frequency drive motor and a lightweight, durable PVC curtain, this system ensures efficient logistics flow while effectively blocking dust, noise, and airflow exchange.

Core Competitive Advantages

  • Frequency-Drive Efficiency: Enables rapid-fire opening speeds (up to 2.0m/s), significantly reducing HVAC energy loss in high-traffic bays.
  • Precision Environmental Seal: Features high-density PVC fabric with wind-resistant ribs to maintain cleanroom or warehouse pressure integrity.
  • Impact-Resistant Safety: Integrated with standard infrared sensors and flexible safety edges to prevent personnel injury or equipment damage.
  • Low-Maintenance Design: Engineered for simplified component replacement and 100,000+ operational cycles in demanding industrial environments.

Key Technical Specifications

Technical Parameter Standard Specification
Maximum Speed 2.0 m/s (Adjustable)
Curtain Fabric High-Density Industrial PVC (0.8mm – 1.5mm)
Wind Load Resistance Class 6 – 8 (Reinforced with Aluminum Ribs)
Operational Modes Radar, Induction Loop, or Remote Control
Durability Rating High-Frequency Daily Use (100k+ Cycles)

Optimize your internal logistics efficiency. Contact our engineering team for a tailored entry solution.

Technical Specs
Door panel material High-density polyester fiber surface coating treatment, thickness 0.8mm–1.5mm.
Start-up speed 0.8–1.5 m/s when on / 0.6–1.2 m/s when off (variable frequency adjustable)
Wind-resistant material Aluminum alloy wind-resistant ribs, segmented connection, easy to replace.
Safety system Photoelectric protection (standard)
Wireless bottom protection (standard)
Infrared sensor protection (optional)
Motor control system Servo motor: low noise, high efficiency, and a safety factor of 1.3 or higher.
Microcomputer frequency conversion speed regulation ensures smoother door operation.
FAQ

A: Yes. Reinforced aluminum ribs make our doors suitable for coastal locations and large openings subject to high wind pressure.

A: Servo motors and springs are rated for 50,000-100,000 cycles — equivalent to 10-20 years at 15 cycles per day in a typical industrial environment.

A: Yes. OEM services for custom widths and heights are available to meet your facility's architectural requirements.

Additional information
BrandAqua Route
Opening SpeedUp to 2.0 m/s
Curtain MaterialHigh-density PVC
SafetyInfrared sensors, Wireless safety edge
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “PVC High-Speed Door”

Your email address will not be published. Required fields are marked *

Related products

Compare
Quick view
Add to wishlist

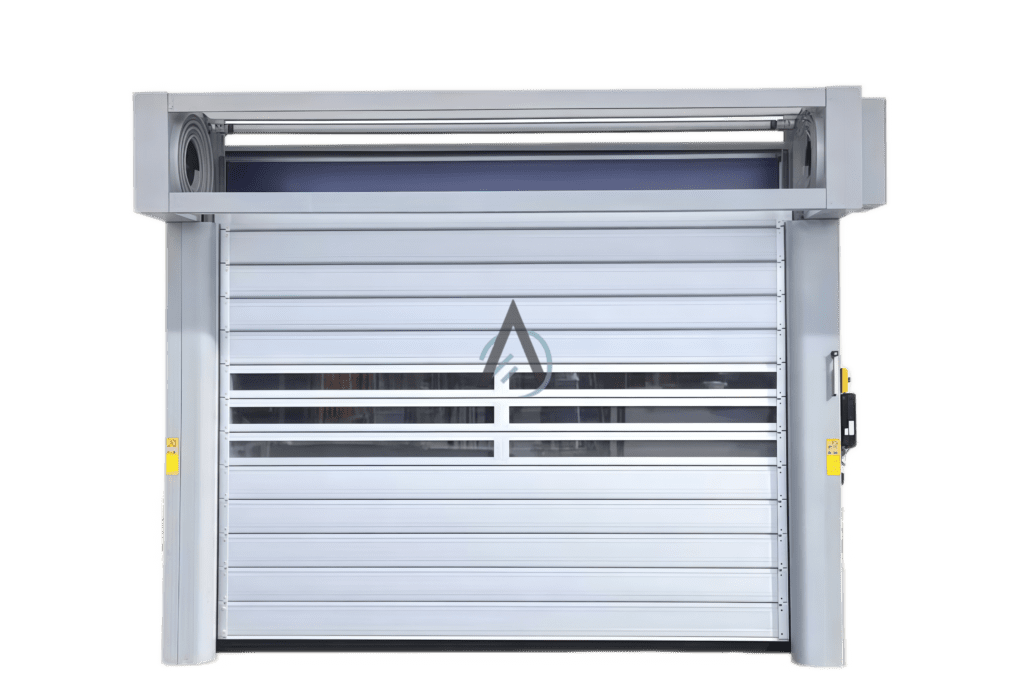

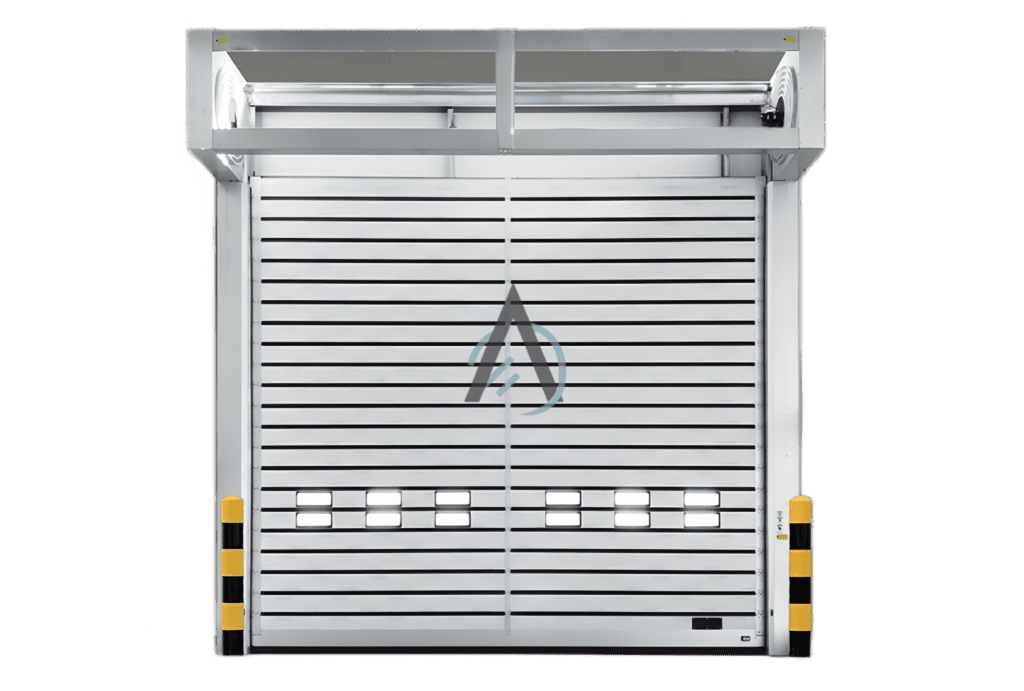

Hard Turbo Rolling Door

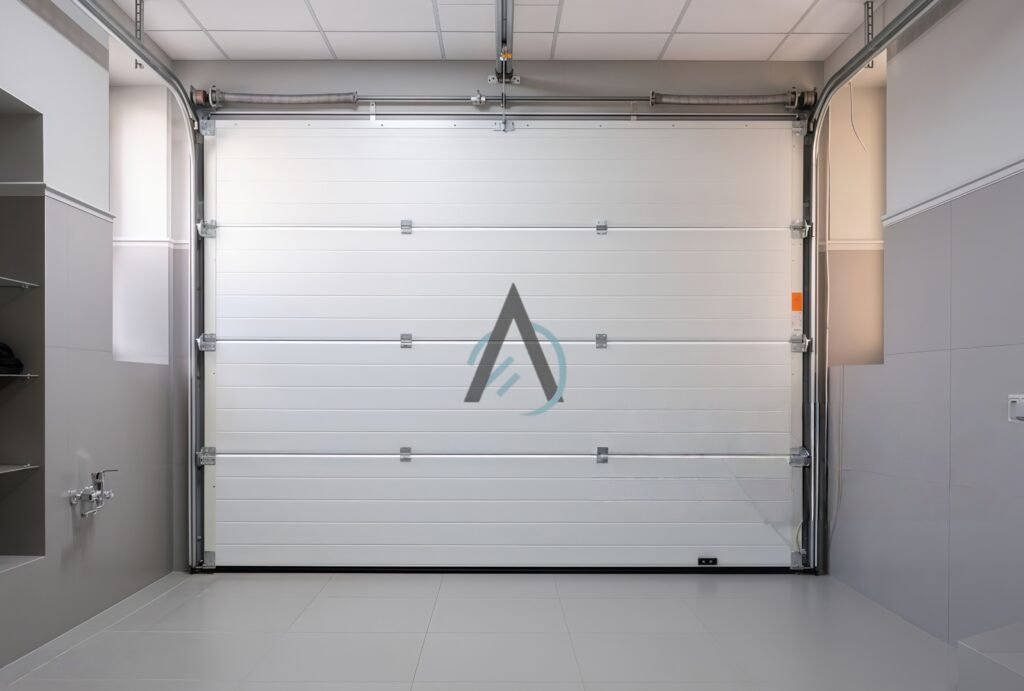

Industrial Sectional Door integrated solution for logistics bays

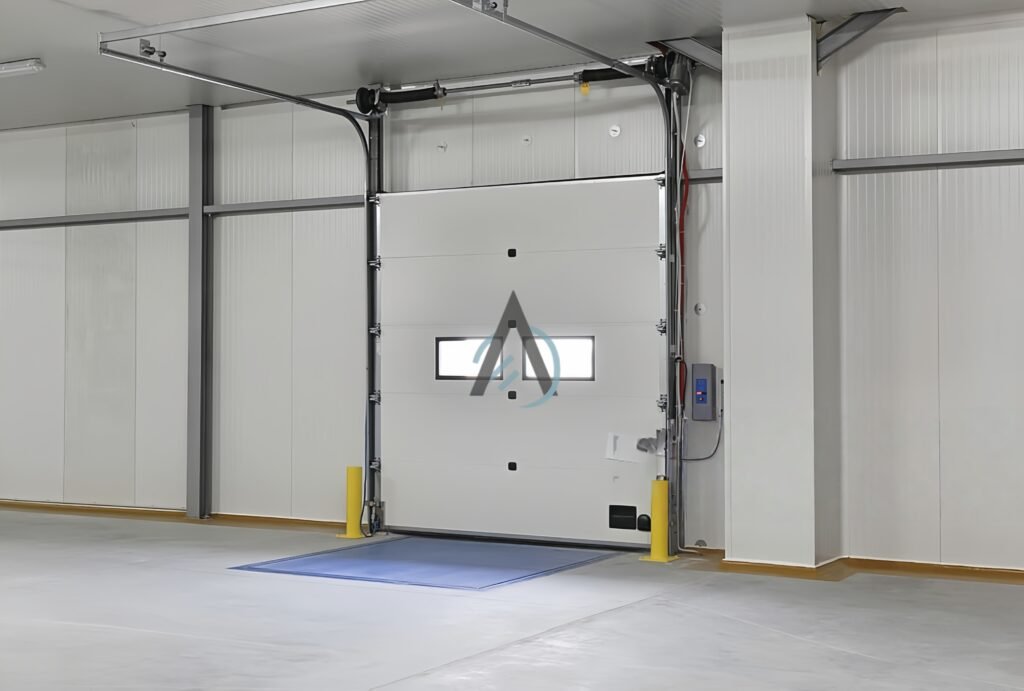

Insulated Industrial Sectional Door for warehouse external openings
