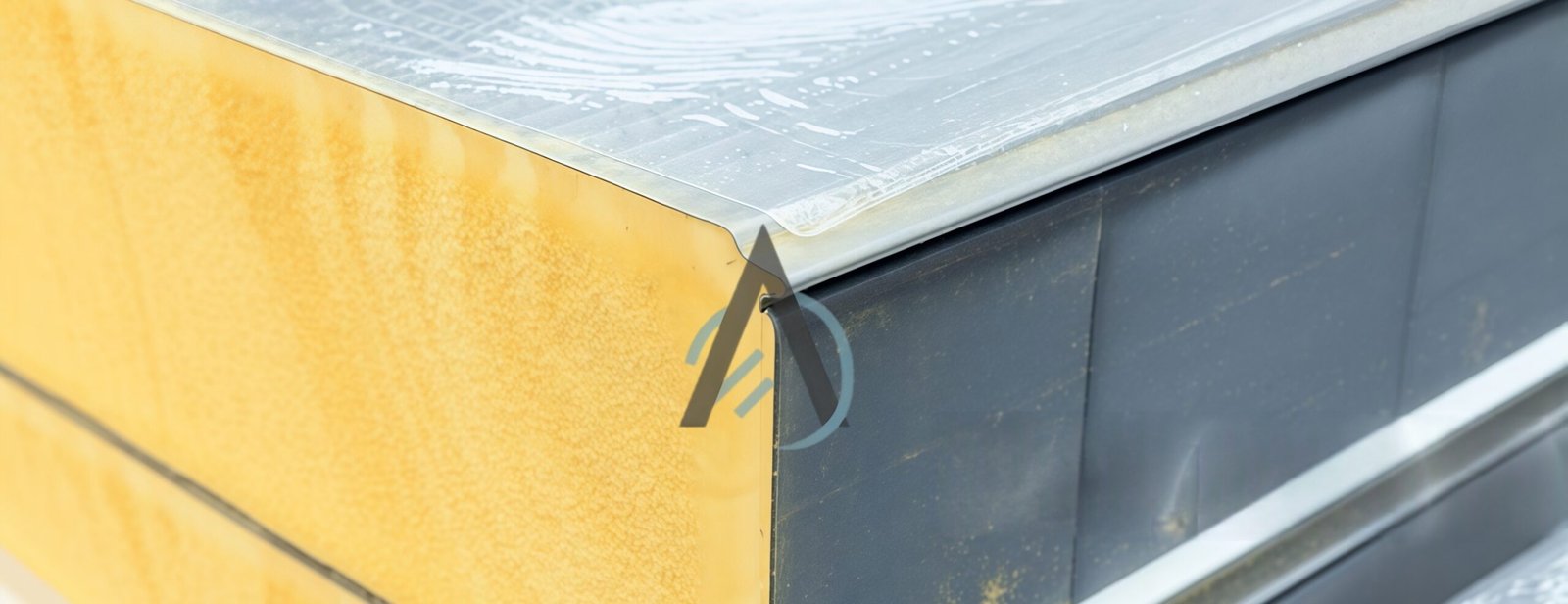

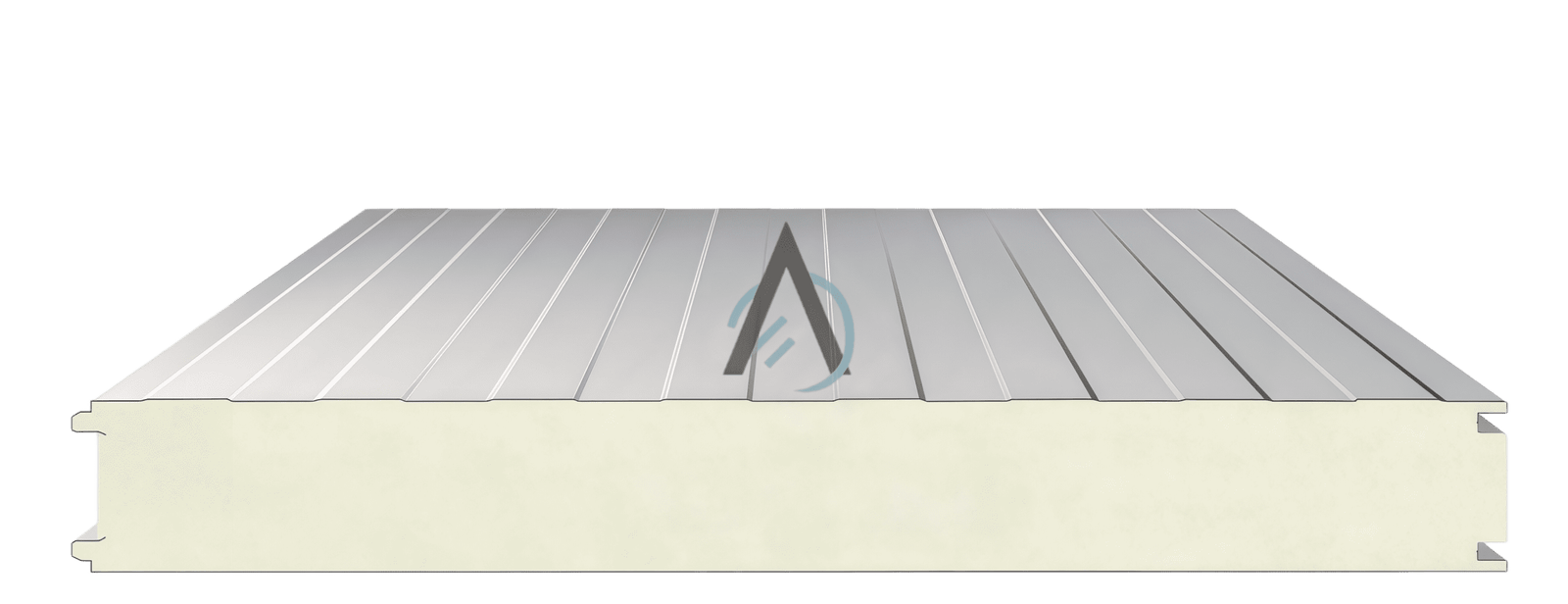

PIR COLD STORAGE PANEL

Aqua Route Polyisocyanurate PIR Cold Storage Panel is produced using Italian OMS complete foaming equipment with high-pressure and high-temperature automatic continuous foaming technology. The high-density PIR polyisocyanurate foam core is perfectly bonded with premium metal facings. The entire foaming process is highly uniform, achieving a closed-cell ratio of over 98%, resulting in ultra-low thermal conductivity, superior thermal insulation, and better fire performance. With high strength, excellent waterproofing and moisture resistance, precise dimensions, and easy installation, it significantly reduces energy consumption and is the preferred enclosure material for modern cold chain warehouses, food processing, pharmaceutical, and logistics cold storage facilities.

Energy-Saving Resilience: Precision-Engineered PIR Cold Storage Panels for Modern Cold Chains

The PIR (Polyisocyanurate) Cold Storage Panel is a mission-critical building material for modern cold chain infrastructure. Fabricated using high-pressure automatic continuous foaming technology, this panel features an ultra-low thermal conductivity PIR core that ensures 98%+ closed-cell integrity, significantly reducing energy consumption and operational costs in large-scale logistical warehouses.

Core Competitive Advantages

Grade B1 Fire Retardancy: Specifically engineered with a high-performance PIR core to meet rigorous B1 fire safety standards, providing enhanced structural protection over standard PUR panels.
Advanced 6-Component Foaming: Utilizing a state-of-the-art 6-component online mixing and foaming system, ensuring a uniform cell structure, exceptional dimensional stability, and maximizing the inherent fire-retardant properties of the PIR core.
High-Density Thermal Insulation: Delivers an ultra-low thermal conductivity of 0.022 – 0.025 W/mK, maintaining internal temperatures with minimal compressor load.
Moisture-Proof Integrity: Achieves a closed-cell ratio exceeding 98%, effectively blocking water vapor penetration and preventing ice buildup within the insulated structure.

Key Technical Specifications

Technical Parameter	Engineering Specification
Core Material	Polyisocyanurate (PIR) Foam
Thermal Conductivity	0.022 – 0.025 W/mK
Fire Safety Rating	Grade B1 (Fire Retardant)
Panel Thickness Range	50 / 75 / 100 / 120 / 150 / 200 mm
Effective Width	1120 mm
Foaming Technology	Advanced 6-Component Continuous Foaming
Closed-cell Ratio	> 98%

Optimize your facility’s energy efficiency. Contact our engineering team for factory-direct PIR panel quotes and technical configurations.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Item	Unit	PIR Cold Storage Panel	PUR Manual Cold Storage Panel
Panel Thickness	mm	30 / 50 / 75 / 100 / 120 / 150 / 180 / 200	50 / 75 / 100 / 120 / 150 / 180 / 200
Panel Width	mm	1,140	960
Practical Width	mm	1,120	960
Density	kg/m³	40 / 45 ± 2	40 ± 2
Heat Conductivity	W/m·K	≤ 0.022	≤ 0.026
Compressive Strength	kPa	≥ 160	≥ 150
Flame Retardant Performance	—	Grade B1	Grade B2
Oxygen Index	%	30	26
Bond Strength Core polyurethane to surface steel	MPa	> 0.1	> 0.1
Peel Performance Core material on surface	—	Uniform distribution	—
Peel Performance Adhesive area per stripping surface	—	> 98%	> 90%
Outer Steel Plate Thickness	mm	0.4 – 0.8	0.376 – 0.8
Outer Steel Plate Coating	—	PVDF / HDP / SMP / PE	PVDF / HDP / SMP / PE
Inner Steel Plate Thickness	mm	0.4 – 0.8	0.376 – 0.8
Inner Steel Plate Coating	—	PVDF / HDP / SMP / PE	PVDF / HDP / SMP / PE

FAQ

`Q1: Why are PIR and PUR panels preferred for cold storage construction?`

 PIR (Polyisocyanurate) and PUR (Polyurethane) panels deliver thermal conductivity (λ) values of 0.022-0.025 W/mK — significantly better than EPS or rock wool alternatives. This translates directly to lower compressor energy consumption and reduced operational costs. Standard effective widths: 1120mm (mechanically produced) and 960mm (hand-assembled).

`Do your cold storage panels meet international safety and quality standards?`

 Yes. Our PIR/PUR panels are CE certified and manufactured under ISO 9001:2015.
We provide fire resistance test reports and SGS verification documentation for
all export orders.

`Q3: How do you ensure airtightness and prevent thermal bridging?`

 Our high-precision tongue-and-groove joint system uses specialized gaskets and cam-locks to create a continuous thermal envelope, eliminating both air leakage and thermal bridging — the two primary causes of frost buildup in cold storage facilities.

`Q4: Can you support international cold room installations?`

 Yes. We provide installation manuals, video tutorials, and remote technical consultation. Engineers are available for on-site guidance on large-scale projects.

`Q5: What panel thickness is recommended for -18°C deep-freeze in tropical climates?`

 For tropical environments with ambient temperatures of 33-36°C, 100-120mm PUR/PIR panels are standard. For continuous 24/7 operation or high door-opening frequency, 150mm panels reduce compressor energy consumption by approximately 20-25%.

Additional information

Brand	Aqua Route
Core Material	Polyisocyanurate (PIR)
Fire Rating	Grade B1
Closed-cell Ratio	> 98%
Manufacturing	Automatic Continuous Foaming
