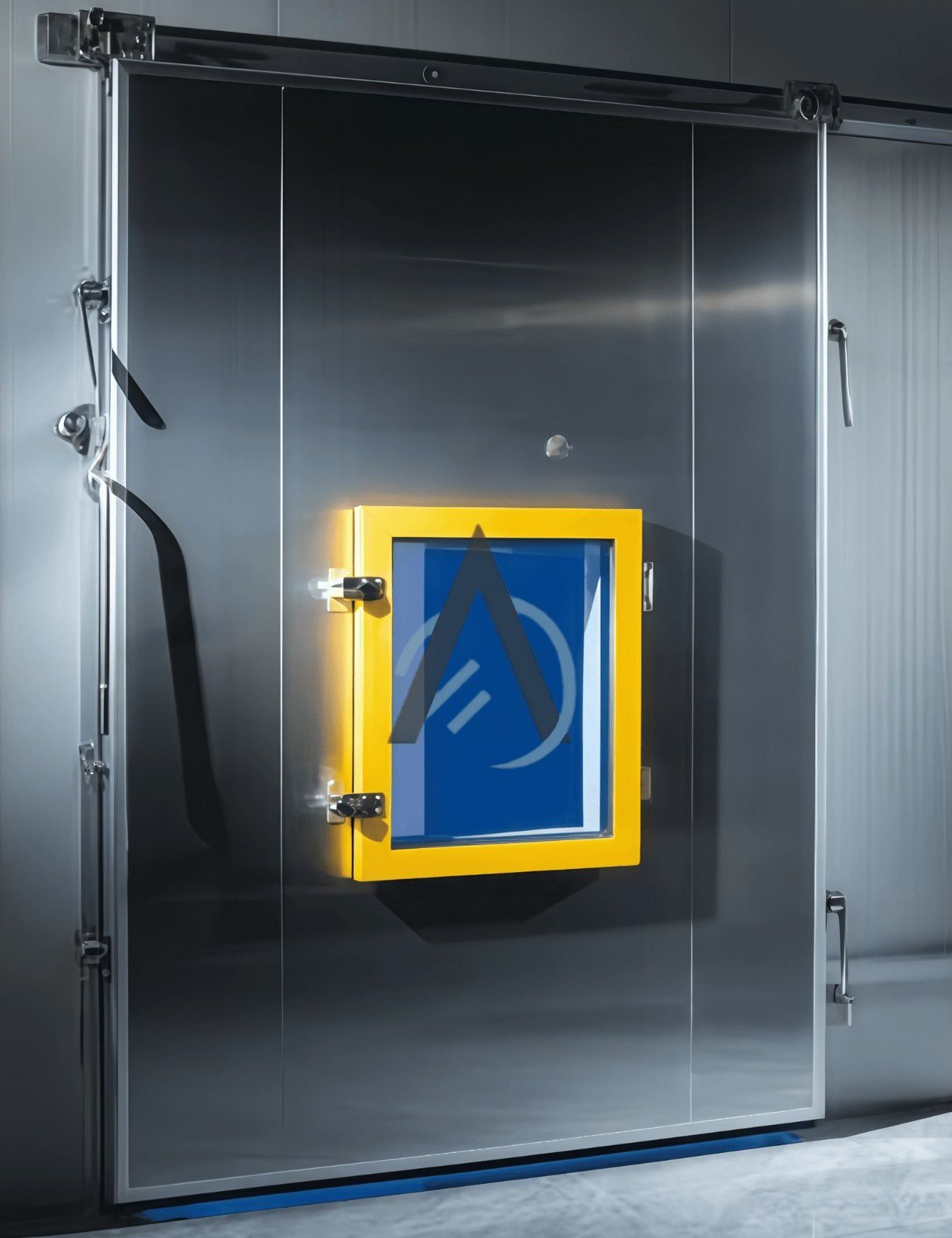

AIR CONDITIONING COLD STORAGE DOOR

Aqua Route Air Conditioning Cold Storage Door is specially designed for Controlled Atmosphere (CA) storage. It features an additional small access door on the main door, allowing personnel to easily enter the storage room to check storage conditions, inspect fan operation, take samples, and perform analysis. The door shell is made of stainless steel or color-coated steel panels with integral polyurethane foaming inside, eliminating thermal bridges and providing excellent thermal insulation and airtightness. High-quality inflatable rubber sealing strips are installed around the inner side of the door leaf, combined with special tightening bolts that firmly press the door against the frame, ensuring superior airtight performance. While ordinary cold storage doors cannot meet CA requirements, this Controlled Atmosphere Sliding Door is purpose-built for high-airtightness CA storage applications.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Item	Requirement
Temperature	-35℃ ~ +160℃
Door Thickness	75 / 100 / 150 / 200 mm
Door Material	Stainless steel or colored steel
Door Internal Material	Polyurethane
Sealing Material	TPE rubber or silicone
Door Frame Material	Aluminum alloy (Antiseptic Proof) Some models contain plastic
Heating Coil	Door frame and door leaf — 2 sets of heating wires Power: 25–75 W (configured by temperature)
Safety Devices	Safety lock (Open the door from inside the room)
Power Supply	220V / 50Hz (for heating coil)

FAQ

`Q1: Why are PIR and PUR panels preferred for cold storage construction?`

 PIR (Polyisocyanurate) and PUR (Polyurethane) panels deliver thermal conductivity (λ) values of 0.022-0.025 W/mK — significantly better than EPS or rock wool alternatives. This translates directly to lower compressor energy consumption and reduced operational costs. Standard effective widths: 1120mm (mechanically produced) and 960mm (hand-assembled).

`Do your cold storage panels meet international safety and quality standards?`

 Yes. Our PIR/PUR panels are CE certified and manufactured under ISO 9001:2015.
We provide fire resistance test reports and SGS verification documentation for
all export orders.

`Q3: How do you ensure airtightness and prevent thermal bridging?`

 Our high-precision tongue-and-groove joint system uses specialized gaskets and cam-locks to create a continuous thermal envelope, eliminating both air leakage and thermal bridging — the two primary causes of frost buildup in cold storage facilities.

`Q4: Can you support international cold room installations?`

 Yes. We provide installation manuals, video tutorials, and remote technical consultation. Engineers are available for on-site guidance on large-scale projects.

`Q5: What panel thickness is recommended for -18°C deep-freeze in tropical climates?`

 For tropical environments with ambient temperatures of 33-36°C, 100-120mm PUR/PIR panels are standard. For continuous 24/7 operation or high door-opening frequency, 150mm panels reduce compressor energy consumption by approximately 20-25%.
