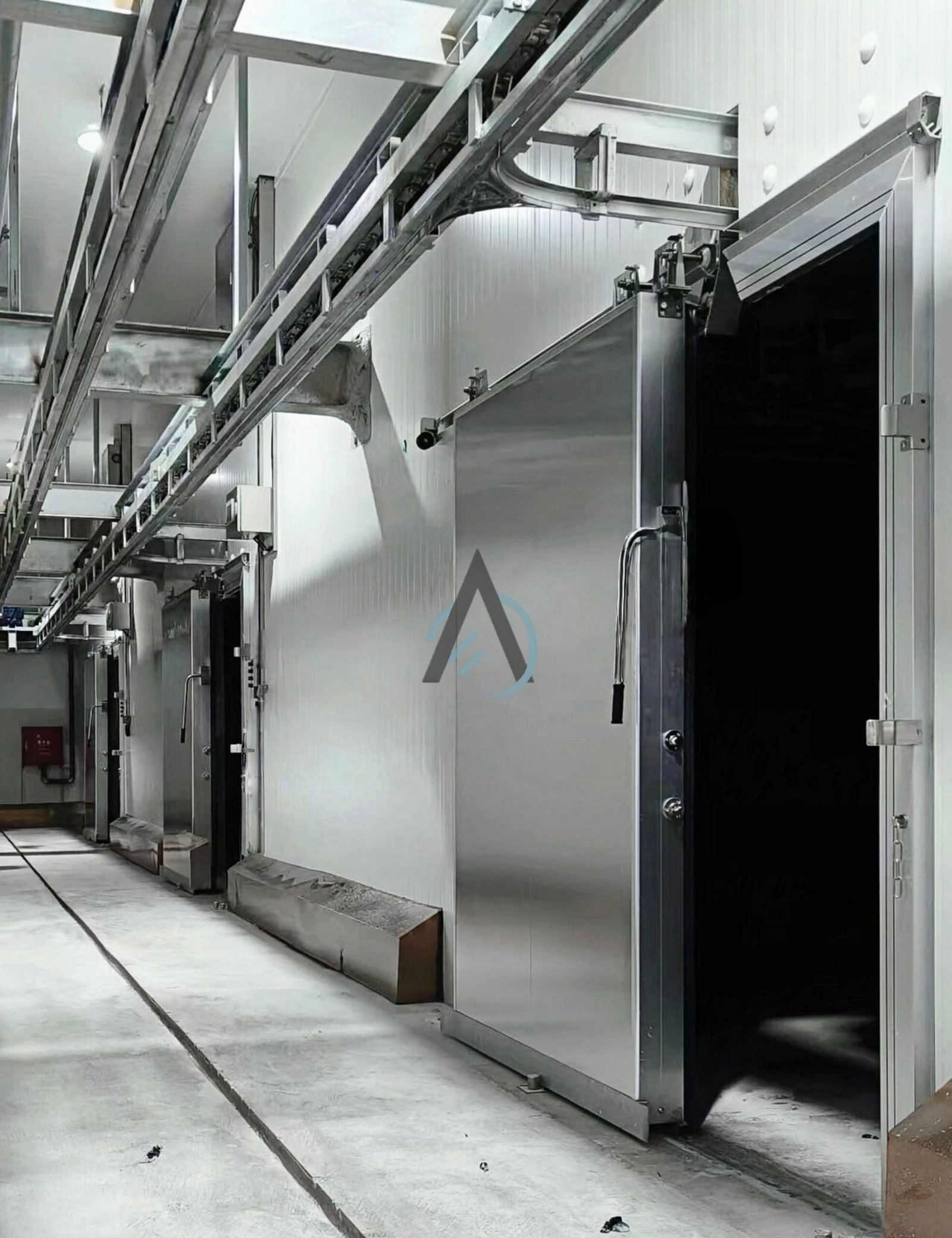

MANUAL SINGLE OPENING SLIDING DOOR

Aqua Route Manual Single-Sliding Cold Storage Door is manufactured with integral polyurethane foaming inside the door, delivering excellent thermal insulation. It is equipped with a built-in escape safety device for enhanced safety and reliability. The door frame uses aluminum alloy rails with guide wheel and pressing wheel mechanisms that automatically separate the door from the frame when opening and tightly press it against the frame and floor when closing, ensuring superior airtightness. It completely overcomes the problem of traditional wooden door frames being prone to rotting, making the overall structure more durable and long-lasting. The door is suitable for a wide temperature range from -95℃ to +160℃, ideal for cold storage rooms, freezer rooms, and high-temperature warehouses.

Premium Manual Single Opening Sliding Door for Industrial Cold Chain

The specialized Manual Single Opening Sliding Door is precision-engineered to provide exceptional thermal isolation and dependable structural sealing for modern refrigerated warehouses. Furthermore, this heavy-duty sliding structure ensures an exceptionally tight perimeter fit to prevent temperature escape. Consequently, it significantly reduces operational energy loss and maintains reliable internal climates for sensitive cold storage infrastructure.

Core Competitive Advantages

Smooth Manual Sliding Operation: Engineered with a high-strength aluminum alloy track and heavy-duty roller bearings. Therefore, it guarantees effortless, smooth manual sliding opening and closing cycles even with heavy industrial usage.
High-Density Thermal Insulation: The door leaf core is injected with rigid polyurethane (PUR) foam under automated high-pressure conditions. In addition, this continuous structural isolation layer strictly eliminates internal cold bridges and surface condensation.
Multi-Channel Weather Stripping: Equipped with premium, highly elastic EPDM rubber gaskets around the perimeter. Moreover, specialized manual compression hardware tightly locks the door leaf onto the frame to maintain maximum long-term airtightness.
Heavy-Duty Industrial Durability: Built with robust, anti-corrosive stainless steel components and an integrated internal luminous safety escape lock system. Consequently, it ensures that warehouse operators can easily push open the door from the inside in emergencies.

Key Technical Specifications

Technical Parameter	Engineering Specification
Official Product Name	Manual Single Opening Sliding Door
Operation Mode	Manual Sliding System (Lightweight Lever Handle)
Insulation Core Material	Rigid Polyurethane (PUR) Foam (Density ≥ 42-45 kg/m³)
Sealing Mechanism	High-Elastic Multi-Channel EPDM Weather-stripping Gaskets
Safety Mechanism	Internal Luminous Safety Escape Device System

Our heavy-duty Manual Single Opening Sliding Door models are widely trusted across global food processing facilities, logistical cold chains, and commercial cold rooms. Protect your industrial refrigeration assets with factory-direct precision manufacturing. Contact our engineering team for site-specific layouts, deep technical specifications, and commercial project quotes today.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Item	Requirement
Temperature	-95℃ ~ +160℃
Door Thickness	75 / 100 / 120 / 150 / 200 mm
Door Material	Stainless steel or colored steel
Door Internal Material	Polyurethane
Sealing Material	TPE rubber or silicone
Door Frame Material	Aluminum alloy (Antiseptic Proof) Some models contain plastic
Heating Coil	Door frame and door leaf — 2 sets of heating wires Power: 25–75 W (configured by temperature)
Safety Devices	Safety lock (Open the door from inside the room)
Power Supply	220V / 50Hz (for heating coil)

FAQ

`Q1: Why are PIR and PUR panels preferred for cold storage construction?`

 PIR (Polyisocyanurate) and PUR (Polyurethane) panels deliver thermal conductivity (λ) values of 0.022-0.025 W/mK — significantly better than EPS or rock wool alternatives. This translates directly to lower compressor energy consumption and reduced operational costs. Standard effective widths: 1120mm (mechanically produced) and 960mm (hand-assembled).

`Do your cold storage panels meet international safety and quality standards?`

 Yes. Our PIR/PUR panels are CE certified and manufactured under ISO 9001:2015.
We provide fire resistance test reports and SGS verification documentation for
all export orders.

`Q3: How do you ensure airtightness and prevent thermal bridging?`

 Our high-precision tongue-and-groove joint system uses specialized gaskets and cam-locks to create a continuous thermal envelope, eliminating both air leakage and thermal bridging — the two primary causes of frost buildup in cold storage facilities.

`Q4: Can you support international cold room installations?`

 Yes. We provide installation manuals, video tutorials, and remote technical consultation. Engineers are available for on-site guidance on large-scale projects.

`Q5: What panel thickness is recommended for -18°C deep-freeze in tropical climates?`

 For tropical environments with ambient temperatures of 33-36°C, 100-120mm PUR/PIR panels are standard. For continuous 24/7 operation or high door-opening frequency, 150mm panels reduce compressor energy consumption by approximately 20-25%.

Additional information

Brand	Aqua Route
Operation	Manual
Door Style	Single-Sliding
Insulation Core	Polyurethane (PU)
Temperature Range	-95℃ to +160℃
