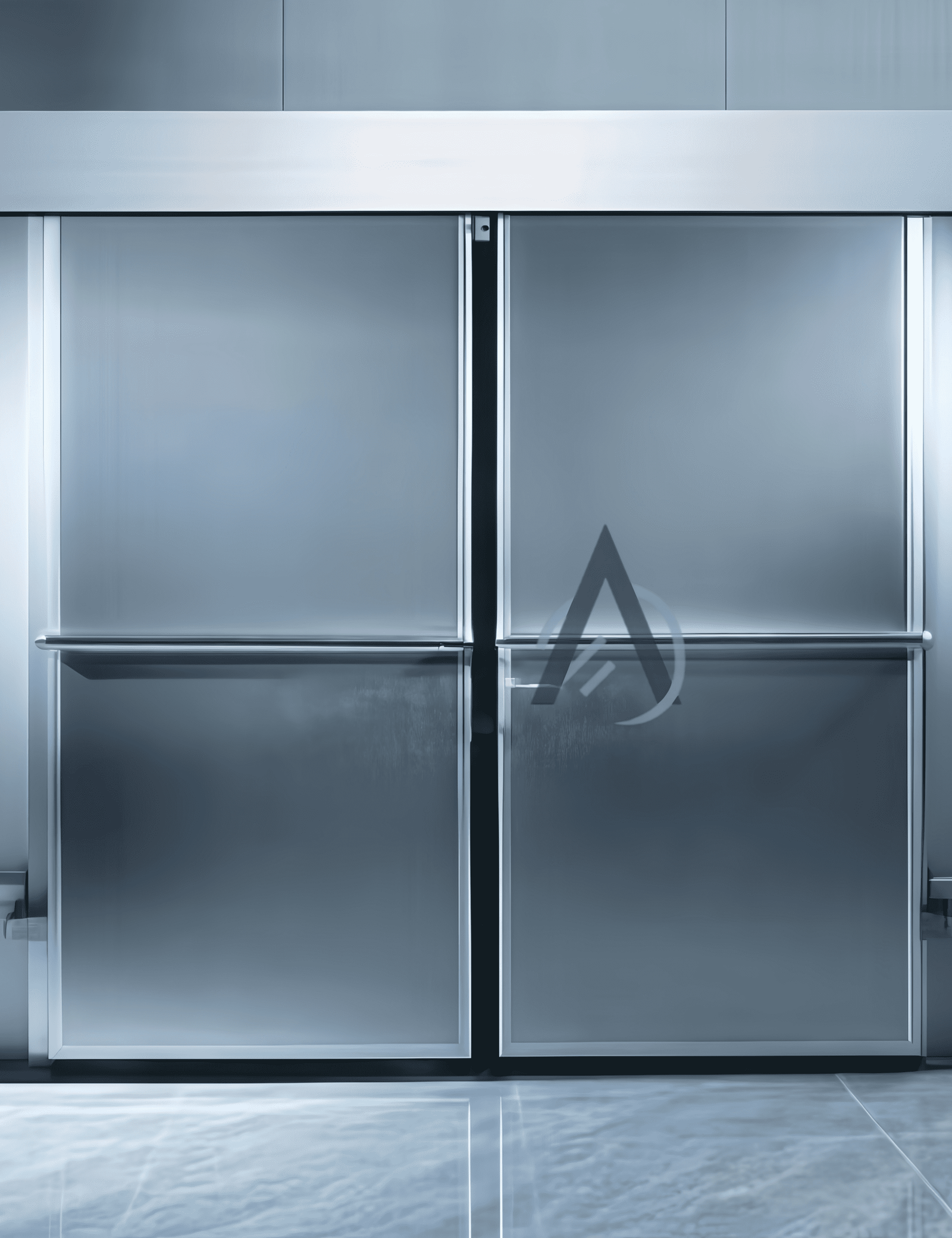

ELECTRIC DOUBLE-OPENING SLIDING DOOR

Aqua Route Electric Double-Sliding Cold Storage Door features integral polyurethane foaming for excellent thermal insulation and a built-in escape safety device for enhanced safety. It is equipped with a synchronous motor control system that precisely controls all door movements, ensuring smooth and stable operation. The door adopts a fully enclosed frameless structure with optional stainless steel or color steel panels, rounded corners, and aluminum alloy door frame, delivering a clean, elegant, and durable appearance. All hardware components are made of high-precision stainless steel for superior corrosion resistance. The double-slide design provides a larger opening span and more convenient passage, making it especially suitable for medium and large cold rooms with frequent traffic.

High-Throughput Automation: Double-Sliding Electric Cold Storage Doors for Large Bays

The Electric Double-Opening Sliding Door is the mission-critical choice for large-scale cold rooms with high-frequency forklift traffic. Utilizing a precision synchronous motor control system, this double-slide configuration provides an expansive opening span with smooth, automated movement to maintain logistical flow in busy temperature-controlled zones.

Core Competitive Advantages

Automated Synchronous Drive: Features a precise motor control system that handles large door masses with smooth acceleration and deceleration curves.
Expansive Passage Span: The double-opening sliding mechanism is optimized for large-vehicle entries and high-volume pallet movement units.
Thermal-Insulated Frameless Structure: Constructed with integral PU foaming and stainless steel or color-coated panels for a clean, durable finish that eliminates heat gain.
Industrial Safety Protection: Integrated with multiple safety sensors and a built-in internal escape device to ensure personnel security during operation.

Key Technical Specifications

Technical Parameter	Operational Scope
Drive System	Electric (Synchronous Motor Integrated)
Door Thickness Range	75mm / 100mm / 120mm / 150mm
Door Architecture	Frameless Fully-Enclosed Design
Opening Span	Optimized for Medium to Extra-Large Bays
Hardware Grade	Precision-Machined Stainless Steel
Reliability Feature	Internal Emergency Release / Escape Device

Maximize your facility’s automated throughput. Contact our engineering team for a high-performance drive quote.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Item	Requirement
Temperature	-95℃ ~ +160℃
Door Thickness	75 / 100 / 120 / 150 / 200 mm
Door Material	Stainless steel or colored steel
Door Internal Material	Polyurethane
Sealing Material	TPE rubber or silicone
Door Frame Material	Aluminum alloy (Antiseptic Proof) Some models contain plastic
Heating Coil	Door frame and door leaf — 2 sets of heating wires Power: 25–75 W (configured by temperature)
Safety Devices	Safety lock (Open the door from inside the room)
Power Supply	220V / 50Hz (for heating coil)

FAQ

`Q1: Why are PIR and PUR panels preferred for cold storage construction?`

 PIR (Polyisocyanurate) and PUR (Polyurethane) panels deliver thermal conductivity (λ) values of 0.022-0.025 W/mK — significantly better than EPS or rock wool alternatives. This translates directly to lower compressor energy consumption and reduced operational costs. Standard effective widths: 1120mm (mechanically produced) and 960mm (hand-assembled).

`Do your cold storage panels meet international safety and quality standards?`

 Yes. Our PIR/PUR panels are CE certified and manufactured under ISO 9001:2015.
We provide fire resistance test reports and SGS verification documentation for
all export orders.

`Q3: How do you ensure airtightness and prevent thermal bridging?`

 Our high-precision tongue-and-groove joint system uses specialized gaskets and cam-locks to create a continuous thermal envelope, eliminating both air leakage and thermal bridging — the two primary causes of frost buildup in cold storage facilities.

`Q4: Can you support international cold room installations?`

 Yes. We provide installation manuals, video tutorials, and remote technical consultation. Engineers are available for on-site guidance on large-scale projects.

`Q5: What panel thickness is recommended for -18°C deep-freeze in tropical climates?`

 For tropical environments with ambient temperatures of 33-36°C, 100-120mm PUR/PIR panels are standard. For continuous 24/7 operation or high door-opening frequency, 150mm panels reduce compressor energy consumption by approximately 20-25%.

Additional information

Brand	Aqua Route
Operation	Electric
Control	Synchronous Motor Control
Structure	Frameless
Door Style	Double-Sliding
