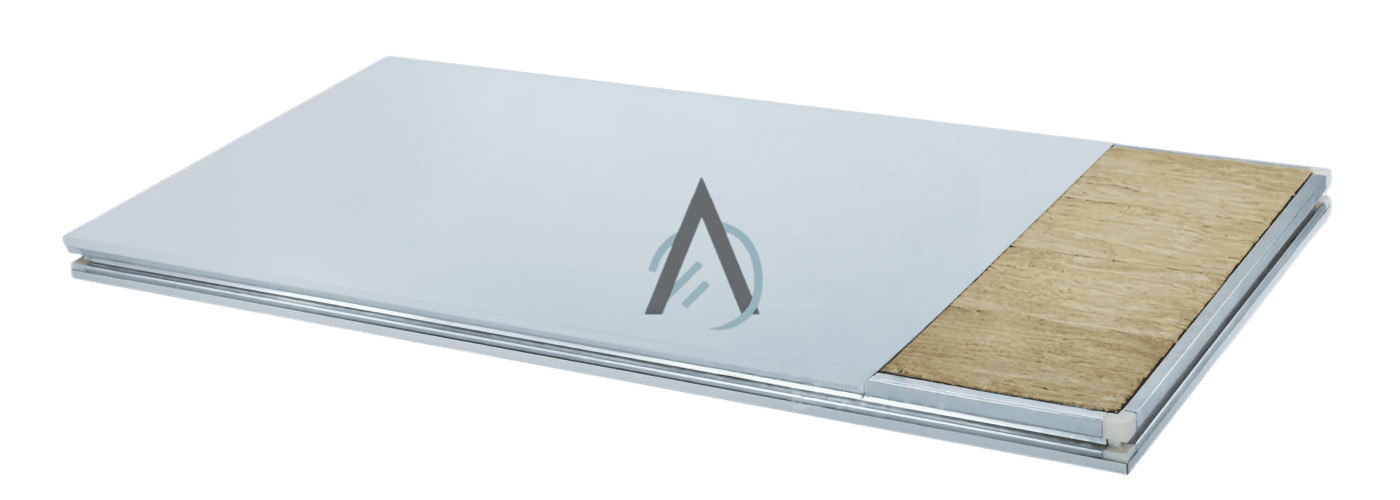

Core material variations for handmade cleanroom sandwich panels
European conformity CE certificate for high-speed roller shutter doors

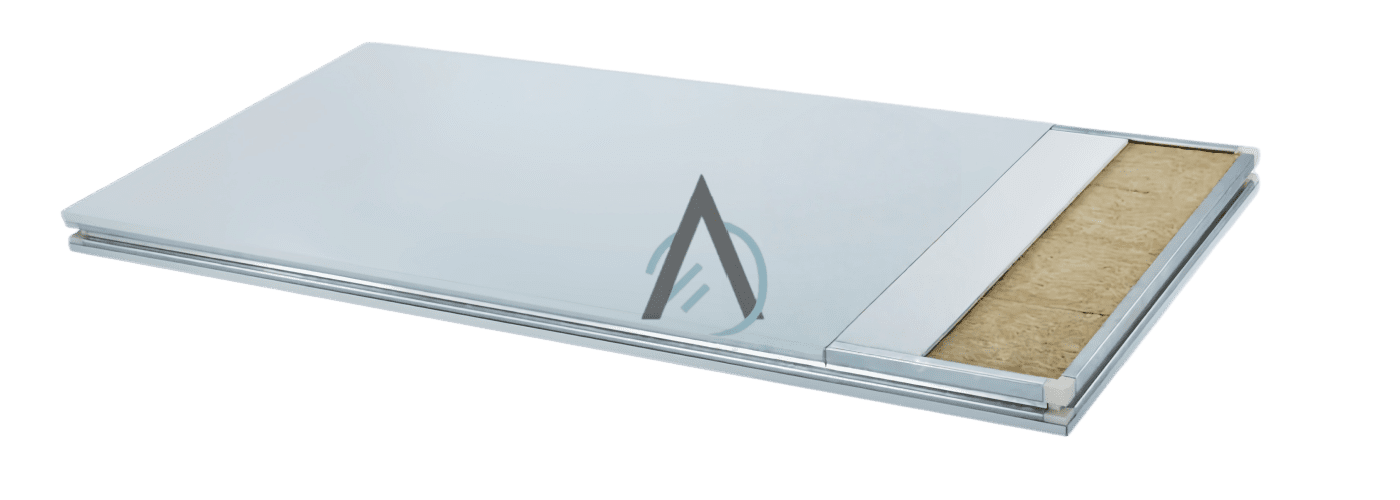

Handmade Sandwich Panels with precise dimensional tolerance

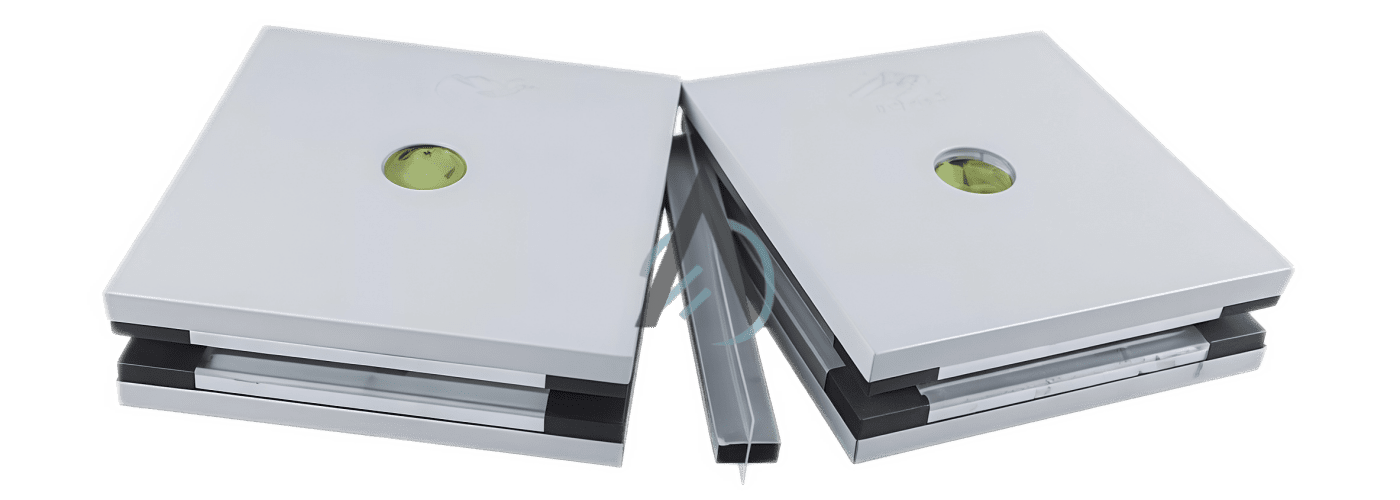

Customized Handmade Sandwich Panels for high-spec industrial projects

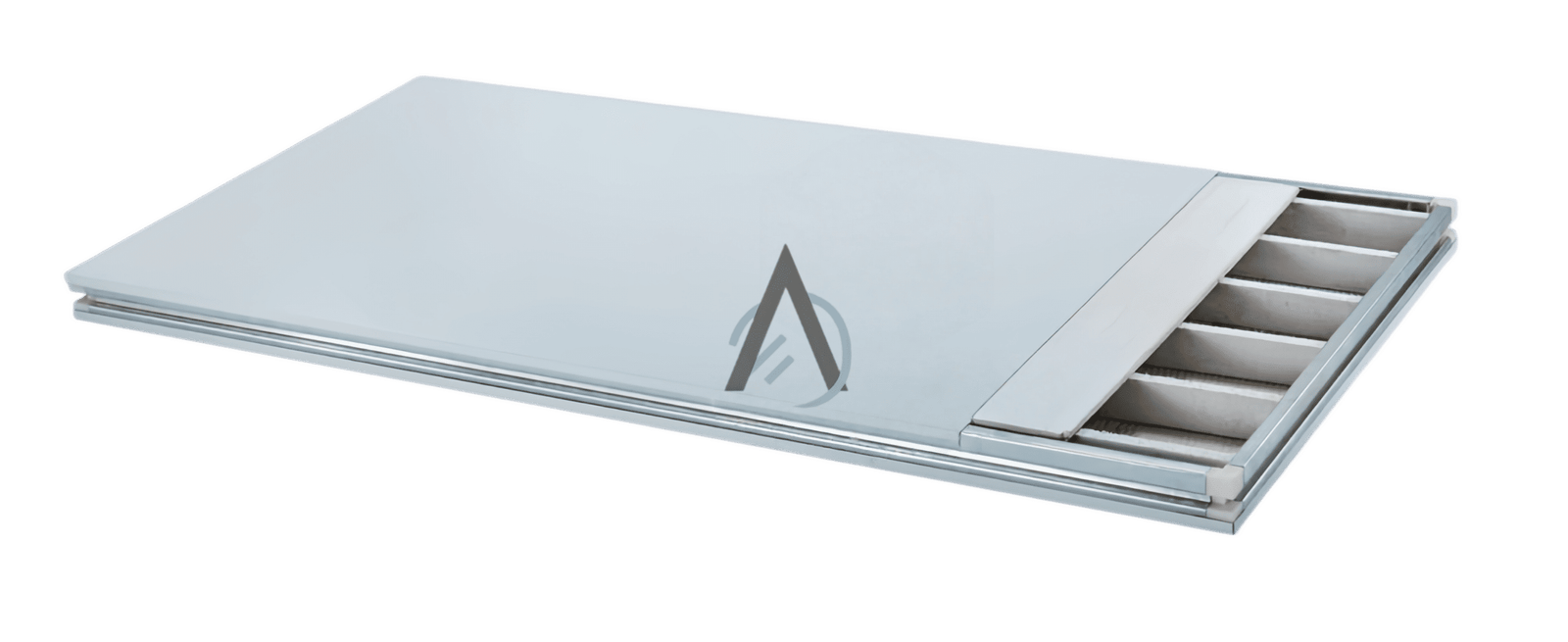

Handmade Sandwich Panel detailing the manual assembly finish
Click to enlarge
Core material variations for handmade cleanroom sandwich panels
European conformity CE certificate for high-speed roller shutter doors
Handmade Sandwich Panels with precise dimensional tolerance
Customized Handmade Sandwich Panels for high-spec industrial projects
Handmade Sandwich Panel detailing the manual assembly finish

Handmade Sandwich Panels

Aqua Route Manual Sandwich Panel is produced with a manual lamination process, allowing flexible selection of various core materials such as Magnesium Oxide (MgO), Magnesium Oxide Rockwool, Rockwool, Medical Purification Core, and Aluminum Honeycomb. Face sheets can be color-coated steel, stainless steel, or magnesium oxide board, with customizable width for high dimensional flexibility. The panel is lightweight, strong, easy to install and process, meeting diverse requirements for fire resistance, thermal insulation, sound insulation, cleanliness, and load-bearing capacity. It is widely used in clean rooms, electronics workshops, food processing facilities, medical purification areas, laboratories, interior partitions, and temporary buildings.

SKU: AR-PNL-HMP-01 Category: Tags: , , , , , , , , ,

Custom Precision Engineering: Flexible Handmade Sandwich Panels for Specialized Facilities

Handmade Sandwich Panels offer maximum structural flexibility for specialized industrial projects requiring non-standard dimensions or diverse core material combinations. Hand-fabricated with high-precision lamination, these panels are ideal for complex medical purification areas, laboratory partitions, and walkable ceiling systems.

Core Competitive Advantages

  • Maximum Core Flexibility: Allows for the integration of MGO, Rock Wool, Medical Core, or Aluminum Honeycomb to meet specific cleanliness or fire-resistance requirements.
  • Precision Manual Fabrication: The manual process ensures high structural integrity and customizable widths up to 1180mm, adapting to any ceiling or wall layout.
  • Lightweight Structural Strength: Specifically engineered for easy installation and processing while maintaining high load-bearing capacity for load-bearing walkable ceilings.
  • Cleanroom-Optimized Finish: Available with color-coated steel or stainless steel face sheets, maintaining strict hygiene standards in electronics and food facilities.

Key Technical Specifications

Technical Parameter Industrial Grade Level
Manufacturing Process High-Precision Hand-Laminated (Handmade)
Effective Width Standard 1180mm (Customizable Dimensions)
Core Material Range MGO, Rock Wool, EPS, PU, Aluminum Honeycomb, MOS
Face Sheet Options Color-coated Steel, Stainless Steel, MGO Board
Primary Application Medical Labs, Electronics Workshops, Food Purification

Achieve custom precision for your specialized infrastructure. Contact our engineering team for factory-direct layout support.

Technical Specs



Panel Specifications
Technical Data Sheet

Item Requirement
Surface Material
Steel / Aluminum / Stainless Steel
Surface Thickness
Steel0.3 – 0.6 mm
Aluminum0.6 – 1.0 mm
Stainless Steel0.6 – 1.0 mm
Panel Thickness
50 mm  /  75 mm  /  100 mm  /  150 mm
Effective Width
1150 mm   (Handmade: 1180 mm)
Length
Customizable
Core Material
MGO  /  MGO Rock Wool  /  EPS  /  PU  /  MOS
Core Density
Rock Wool60 – 140 kg/m³
MOS220 kg/m³
EPS30 – 35 kg/m³
PU35 kg/m³
Fire Rating
Rock Wool / MGO / MOS
Grade A
EPS
B1
PU
B1
Surface Types
Flat  (Customizable molding or smooth finish)

Specifications subject to change without notice. Contact Aqua Route for confirmed project specifications.
FAQ

A: Products are manufactured under ISO 9001:2015 and SGS-verified for material purity and structural integrity.

A: Yes. Wall and ceiling panels feature flush joints for smooth, seamless surfaces that minimize dust accumulation and simplify sanitization in controlled environments.

A: Yes. Custom lengths and thicknesses are available to match your facility layout. Standard production lead time is 15-20 working days.

Additional information
BrandAqua Route
Effective Width1180mm (Customizable)
Core MaterialMGO, Rock Wool, EPS, PU, Aluminum Honeycomb, MOS
ManufacturingHandmade
