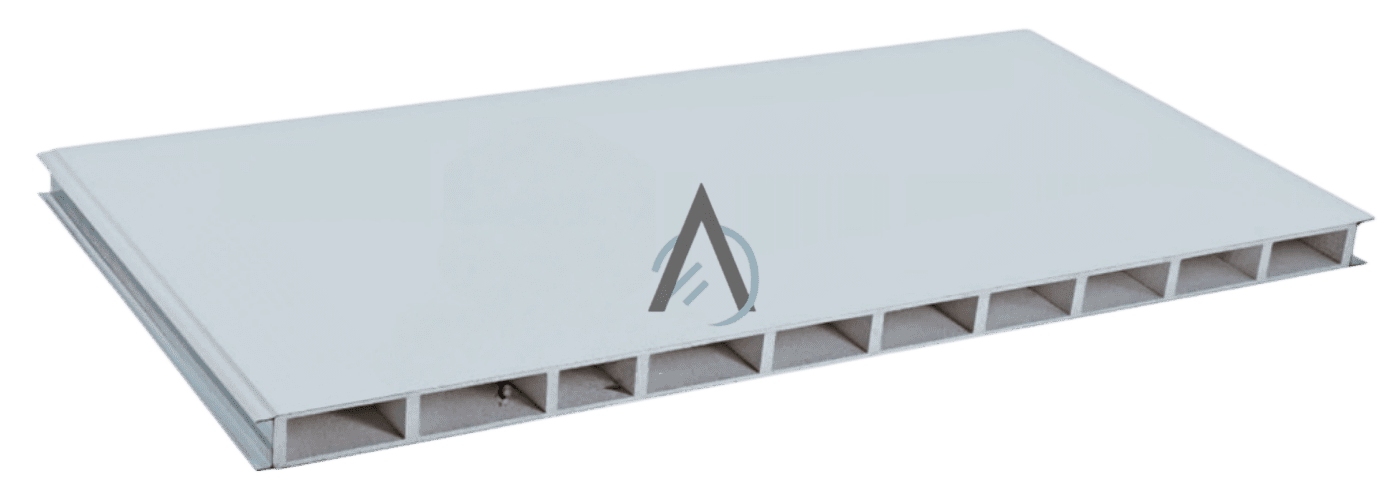

MGO Sandwich Panel

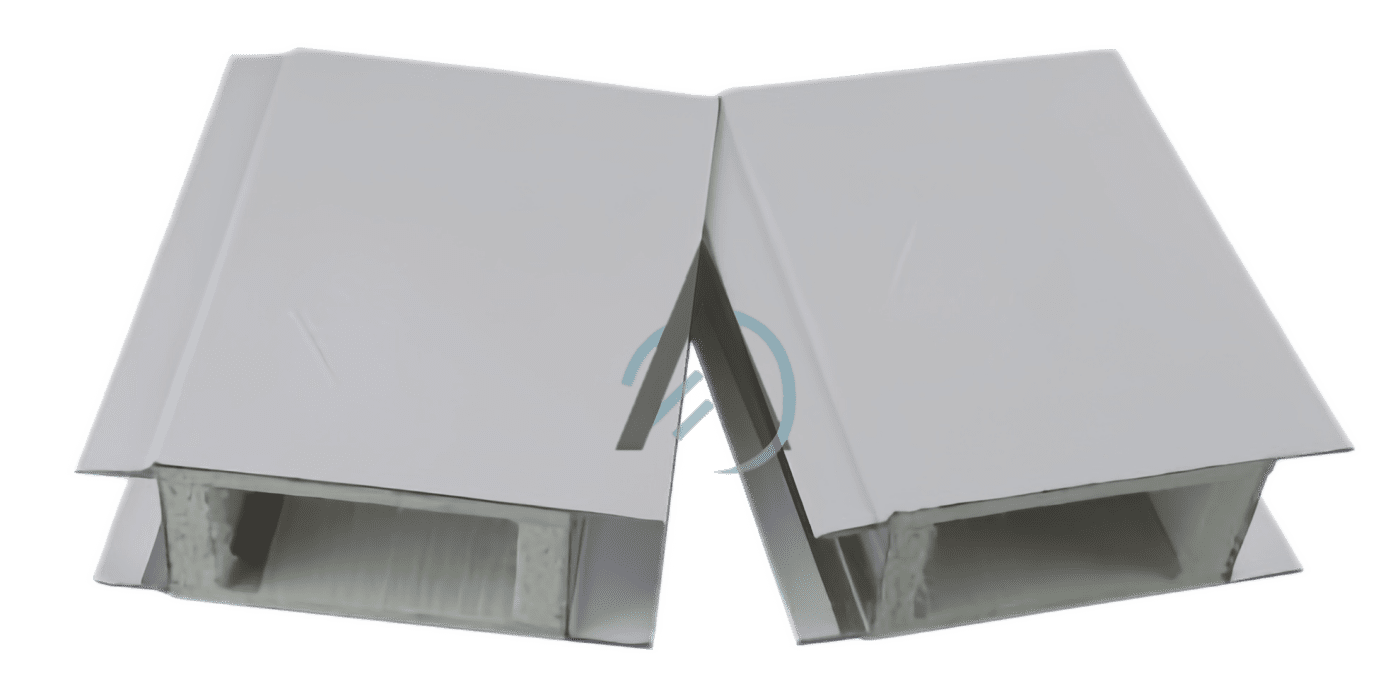

Aqua Route Magnesium Oxide Sandwich Panel (MgO Sandwich Panel) is composed of magnesium oxide boards as face sheets with a high-density rockwool or polyurethane core. The MgO boards offer excellent Class A non-combustible fire resistance, moisture-proof, mold-proof, corrosion resistance, and eco-friendly non-toxic properties. Combined with the core’s superior thermal insulation, the panel provides high strength, lightweight construction, good sound insulation, and excellent workability. With a smooth and attractive surface and easy installation, it is the ideal choice for interior and exterior walls as well as ceilings in clean rooms, electronics workshops, food processing plants, hospitals, laboratories, and other buildings with high requirements for fire safety, moisture resistance, and environmental protection.

Moisture-Proof Integrity: Magnesium Oxide (MgO) Sandwich Panels for Controlled Environments

The MGO Sandwich Panel is a high-performance building solution optimized for high-humidity and fire-sensitive environments. Utilizing magnesium oxide boards as face sheets with a high-density core, this system provides a mold-proof, corrosion-resistant surface ideal for laboratories, hospitals, and pharmaceutical facilities.

Core Competitive Advantages

Class A Fire & Moisture Resistance: MgO face sheets deliver Class A fire resistance and exceptional moisture-proof performance, preventing mold and corrosion in wet-process areas.
High Structural Rigidity: Provides high impact resistance and structural stability while maintaining a lightweight profile for efficient ceiling and wall installation.
Eco-Friendly Non-Toxic Composition: Engineered with non-toxic, environmentally neutral materials suitable for food processing and medical-grade clean rooms.
Corrosion-Resistant Surface: Specifically treated to withstand chemical exposure, ensuring long-term surface integrity in electronics and chemical workshops.

Key Technical Specifications

Technical Parameter	Industrial Grade Data
Face Sheet Material	Magnesium Oxide (MgO) Board
Core Material Options	High-Density Rock Wool / Polyurethane (PU)
Fire Safety Grade	Class A (Non-combustible)
Surface Properties	Moisture-proof, Mold-proof, Corrosion-resistant
Application Focus	Pharma Labs, Electronics Workshops, Food Plants

Deploy high-rigidity solutions for your controlled environments. Contact our engineering team for factory-direct dimensions.

Technical Specs

Panel Specifications

Technical Data Sheet

Item	Requirement
Surface Material	Steel / Aluminum / Stainless Steel
Surface Thickness	Steel0.3 – 0.6 mm Aluminum0.6 – 1.0 mm Stainless Steel0.6 – 1.0 mm
Panel Thickness	50 mm / 75 mm / 100 mm / 150 mm
Effective Width	1150 mm (Handmade: 1180 mm)
Length	Customizable

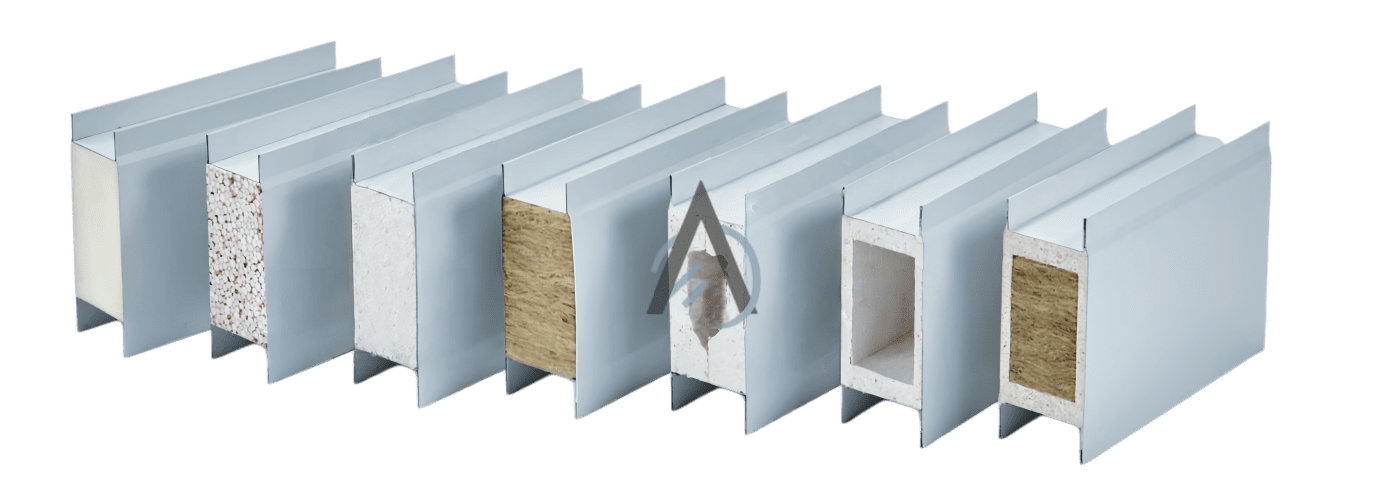

Core Material	MGO / MGO Rock Wool / EPS / PU / MOS
Core Density	Rock Wool60 – 140 kg/m³ MOS220 kg/m³ EPS30 – 35 kg/m³ PU35 kg/m³
Fire Rating	Rock Wool / MGO / MOS Grade A EPS B1 PU B1
Surface Types	Flat (Customizable molding or smooth finish)

FAQ

`Q1: How do I choose the right core material for different clean room environments?`

 A: Selection depends on your technical requirements: - High Fire Safety: Rock Wool (Class A fire rating, non-combustible)
- Moisture-Resistant Environments: Magnesium Oxide Board (MOB) — superior performance in high-humidity conditions
- High Precision / Electronics: Aluminum Honeycomb — extreme flatness (±0.5mm), anti-static compatible

`Q2: What certifications do your clean room materials hold?`

A: Products are manufactured under ISO 9001:2015 and SGS-verified for material purity and structural integrity.

`Q3: Is your system designed for flush-mount installation?`

 A: Yes. Wall and ceiling panels feature flush joints for smooth, seamless surfaces that minimize dust accumulation and simplify sanitization in controlled environments.

`Q4: Can I customize panel dimensions?`

 A: Yes. Custom lengths and thicknesses are available to match your facility layout. Standard production lead time is 15-20 working days.

Additional information

Brand	Aqua Route
Face Sheet	Magnesium Oxide (MgO)
Core Material	Rock Wool, PU
Fire Rating	Class A
Properties	Moisture-proof, Mold-proof, Corrosion-resistant
