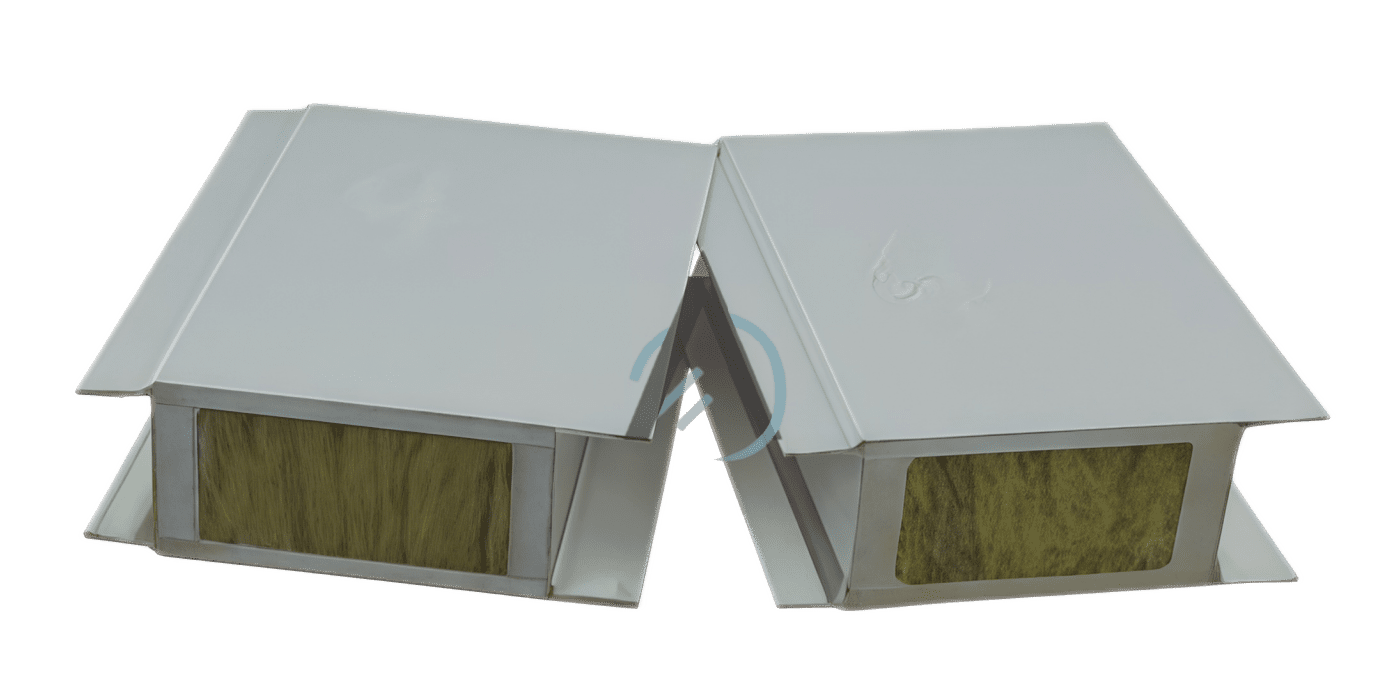

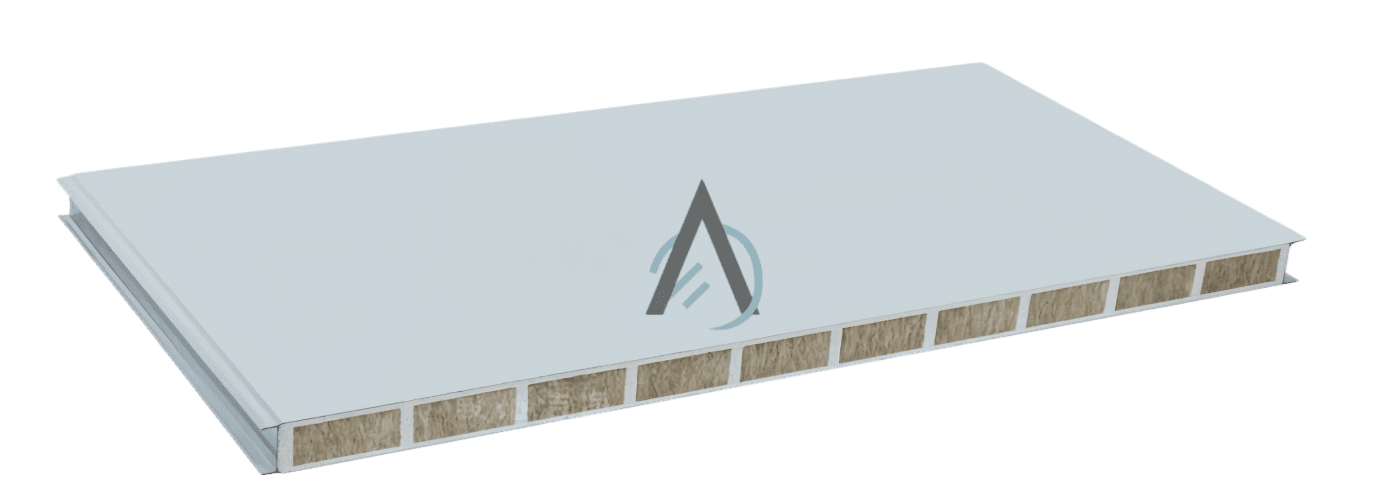

MGO Rock Wool Sandwich Panel

Aqua Route Magnesium Oxide Sandwich Panel (MgO Sandwich Panel) is composed of magnesium oxide boards as face sheets with a high-density rockwool or polyurethane core. The MgO boards offer excellent Class A non-combustible fire resistance, moisture-proof, mold-proof, corrosion resistance, and eco-friendly non-toxic properties. Combined with the core’s superior thermal insulation, the panel provides high strength, lightweight construction, good sound insulation, and excellent workability. With a smooth and attractive surface and easy installation, it is the ideal choice for interior and exterior walls as well as ceilings in clean rooms, electronics workshops, food processing plants, hospitals, laboratories, and other buildings with high requirements for fire safety, moisture resistance, and environmental protection.

Integrated Fire & Acoustic Control: MGO Rock Wool Sandwich Panels for Clean Rooms

The integrated AS/RS Racking System The MGO Rock Wool Sandwich Panel integrates the non-combustible properties of rock wool with the high-rigidity of magnesium oxide (MGO) boards. This mission-critical combination is engineered for high-precision clean rooms and medical facilities requiring maximum sound insulation and Class A fire protection.

Core Competitive Advantages

Advanced Acoustic Insulation: The synergy between the MGO face sheets and rock wool core effectively dampens industrial noise and vibration.
Double-Layered Fire Barrier: Both the face sheets and core material meet Class A non-combustible standards, providing redundant thermal safety.
Precision Surface Flatness: MgO boards ensure a perfectly smooth finish, specifically designed for medical purification and nanotechnology clean environments.
Structural Load Stability: High-density core integration provides enhanced load-bearing capacity for walkable ceiling systems and load-bearing partitions.

Key Technical Specifications

Technical Parameter	Engineering Specification
Composite Core Type	MGO + High-Density Rock Wool
Fire Protection Grade	Class A (Non-combustible)
Primary Function	Sound Insulation & Fire Safety Integration
Board Surface	High-Flatness Magnesium Oxide (MgO)
Applicable Standards	Medical Purification, Clean Room ISO Compliance

Optimize your facility’s safety and acoustic performance. Contact our engineering team for a technical design consultation.

Contact our engineering team for custom AS/RS Racking solutions.

Technical Specs

Panel Specifications

Technical Data Sheet

Item	Requirement
Surface Material	Steel / Aluminum / Stainless Steel
Surface Thickness	Steel0.3 – 0.6 mm Aluminum0.6 – 1.0 mm Stainless Steel0.6 – 1.0 mm
Panel Thickness	50 mm / 75 mm / 100 mm / 150 mm
Effective Width	1150 mm (Handmade: 1180 mm)
Length	Customizable

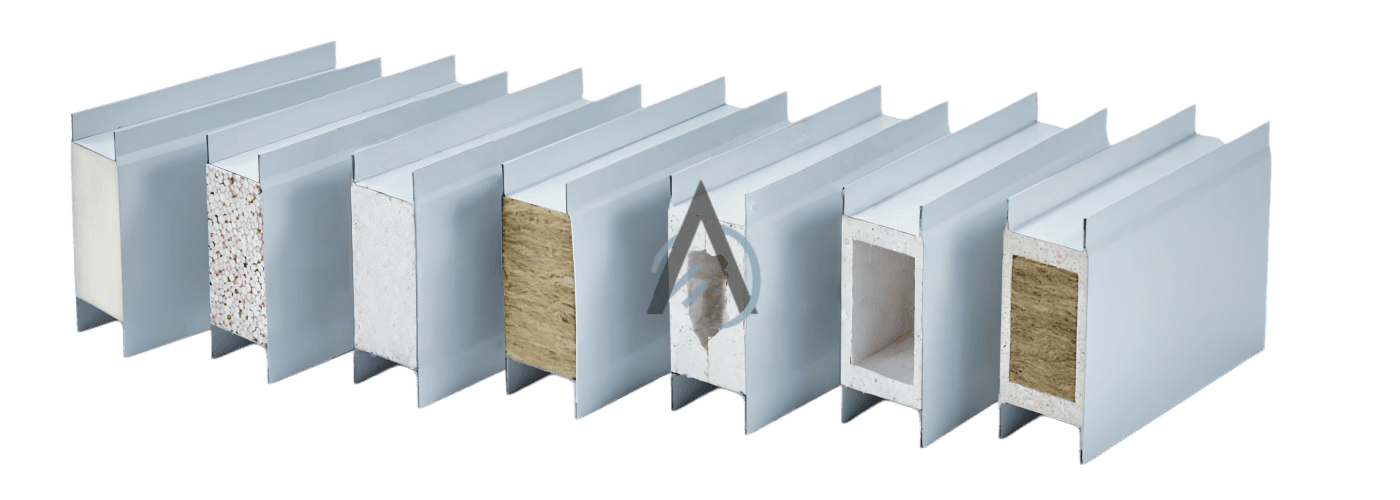

Core Material	MGO / MGO Rock Wool / EPS / PU / MOS
Core Density	Rock Wool60 – 140 kg/m³ MOS220 kg/m³ EPS30 – 35 kg/m³ PU35 kg/m³
Fire Rating	Rock Wool / MGO / MOS Grade A EPS B1 PU B1
Surface Types	Flat (Customizable molding or smooth finish)

FAQ

`Q1: How do I choose the right core material for different clean room environments?`

 A: Selection depends on your technical requirements: - High Fire Safety: Rock Wool (Class A fire rating, non-combustible)
- Moisture-Resistant Environments: Magnesium Oxide Board (MOB) — superior performance in high-humidity conditions
- High Precision / Electronics: Aluminum Honeycomb — extreme flatness (±0.5mm), anti-static compatible

`Q2: What certifications do your clean room materials hold?`

A: Products are manufactured under ISO 9001:2015 and SGS-verified for material purity and structural integrity.

`Q3: Is your system designed for flush-mount installation?`

 A: Yes. Wall and ceiling panels feature flush joints for smooth, seamless surfaces that minimize dust accumulation and simplify sanitization in controlled environments.

`Q4: Can I customize panel dimensions?`

 A: Yes. Custom lengths and thicknesses are available to match your facility layout. Standard production lead time is 15-20 working days.

Additional information

Brand	Aqua Route
Core Material	MGO, Rock Wool
Fire Rating	Class A
Feature	Moisture-proof, Sound Insulation
