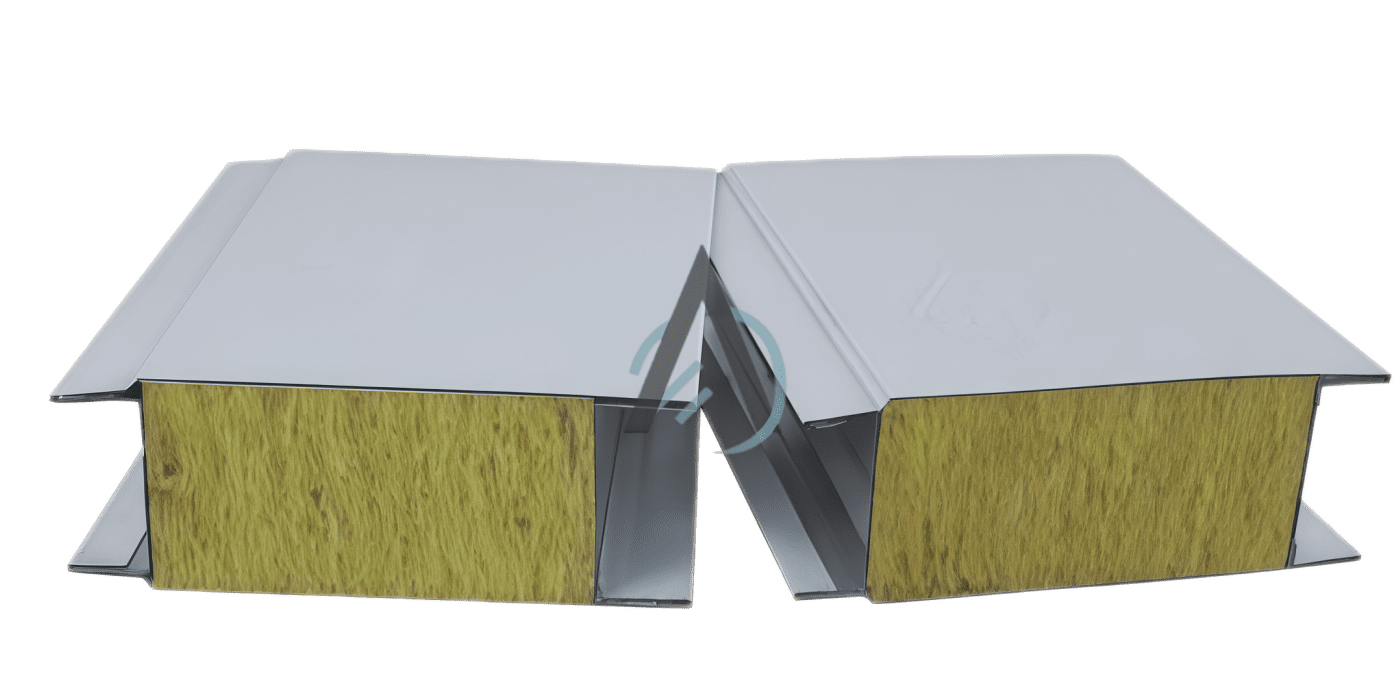

Rock Wool Sandwich Panel

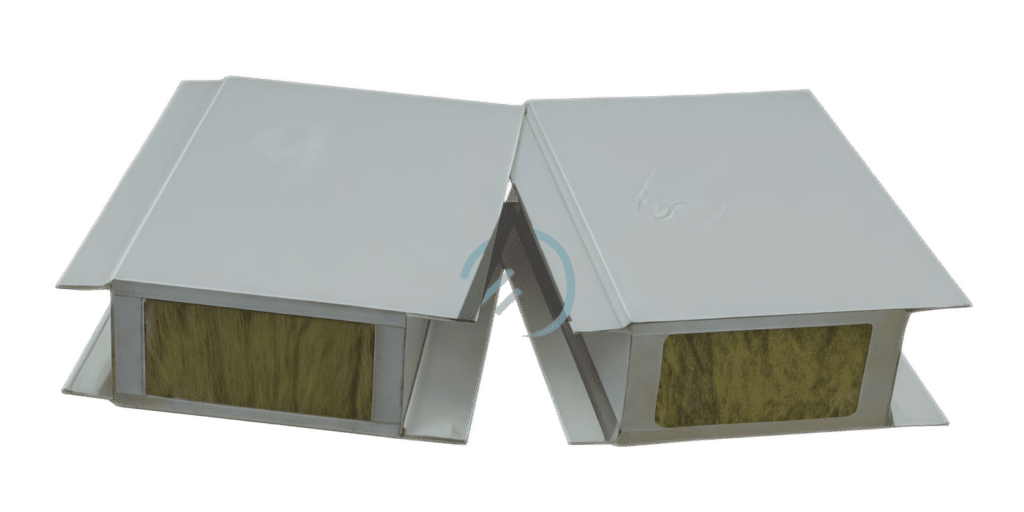

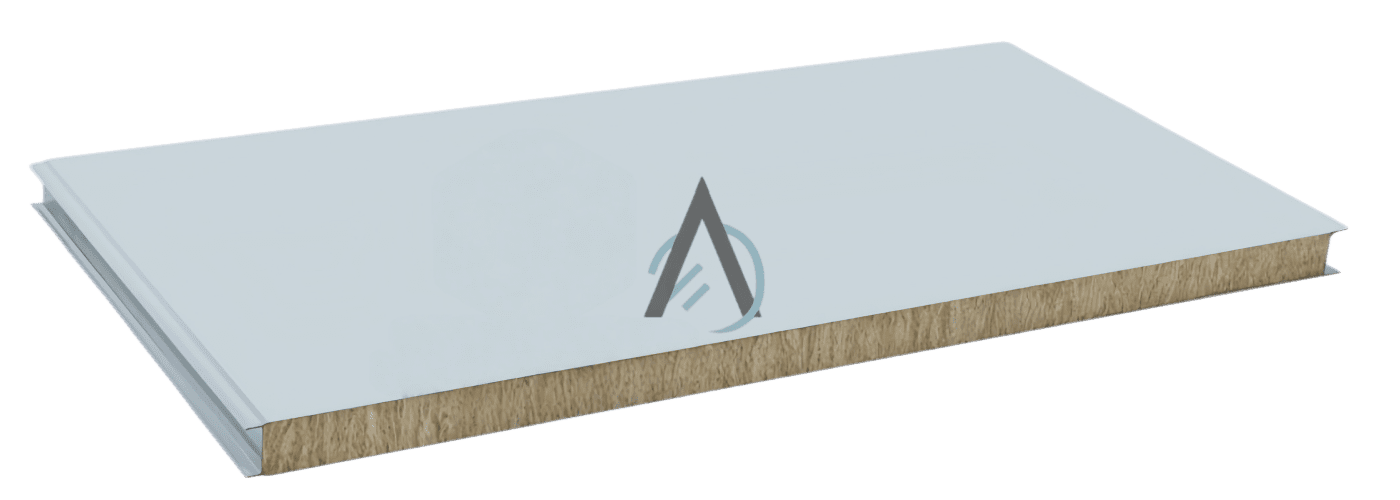

Aqua Route Rockwool Sandwich Panel is composed of high-density rockwool core bonded between premium color-coated steel or stainless steel sheets. The rockwool core offers Class A non-combustible fire resistance with a melting point above 1000°C, along with excellent thermal insulation, sound insulation, and noise absorption properties. The panel features lightweight high strength, waterproof and moisture-resistant performance, and easy installation. It is the ideal choice for exterior walls, roofing, and interior partitions in industrial plants, warehouses, clean rooms, commercial buildings, and other projects with high fire safety requirements.

Class A Fire Resistance: Precision-Engineered Rock Wool Sandwich Panels for Industrial Safety

The Rock Wool Sandwich Panel is a high-density structural solution designed for industrial projects requiring stringent fire safety and thermal insulation. Composed of a non-combustible rock wool core bonded between reinforced steel sheets, this panel provides a robust barrier against high-intensity thermal exposure while maintaining acoustic dampening properties.

Core Competitive Advantages

Class A Non-Combustibility: Engineered with a rock wool core that resists melting up to temperatures exceeding 1000°C, meeting strict Class A fire safety regulations.
High-Density Insulation: Delivers consistent thermal resistance and sound absorption, significantly reducing operational noise and energy consumption in large-scale facilities.
High Load-Bearing Capacity: Combines lightweight construction with high load-bearing capacity, specifically designed for industrial exterior walls and roofing systems.
Moisture-Resistant Performance: Features precision-sealed edges to maintain core integrity and prevent water penetration in humid industrial environments.

Key Technical Specifications

Technical Parameter	Engineering Specification
Fire Safety Rating	Class A (Non-combustible)
Core Melting Point	> 1000°C
Available Thickness	50mm / 75mm / 100mm / 150mm
Core Material	High-Density Mineral Rock Wool
Primary Application	Industrial Plants, Warehouses, Clean Rooms

Secure your facility with mission-critical fire protection. Contact our engineering team for a technical consultation and factory-direct quote.

Technical Specs

Panel Specifications

Technical Data Sheet

Item	Requirement
Surface Material	Steel / Aluminum / Stainless Steel
Surface Thickness	Steel0.3 – 0.6 mm Aluminum0.6 – 1.0 mm Stainless Steel0.6 – 1.0 mm
Panel Thickness	50 mm / 75 mm / 100 mm / 150 mm
Effective Width	1150 mm (Handmade: 1180 mm)
Length	Customizable

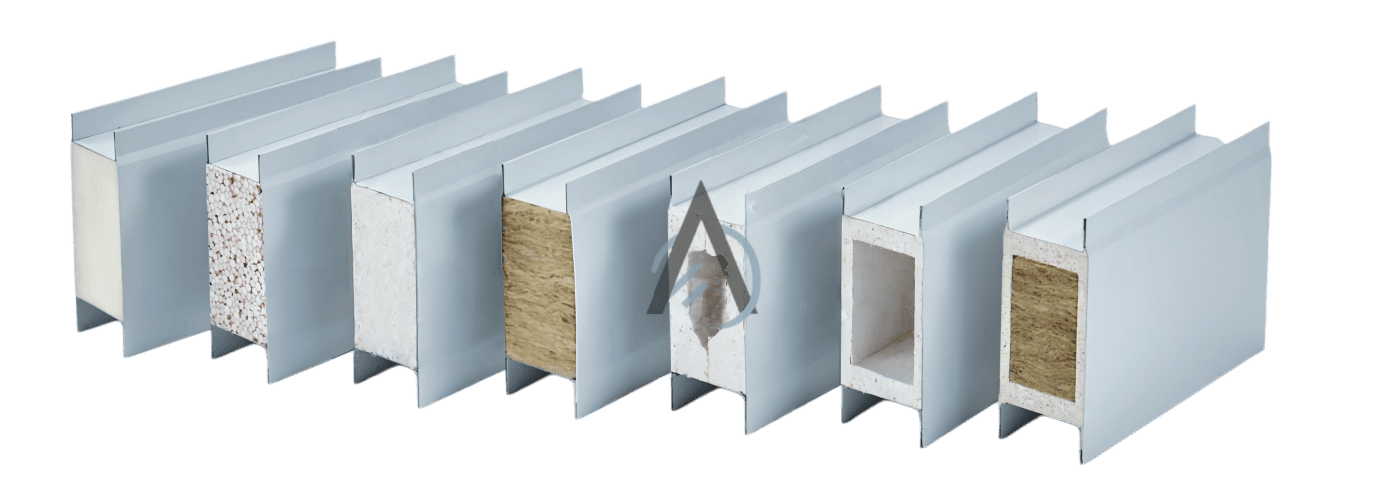

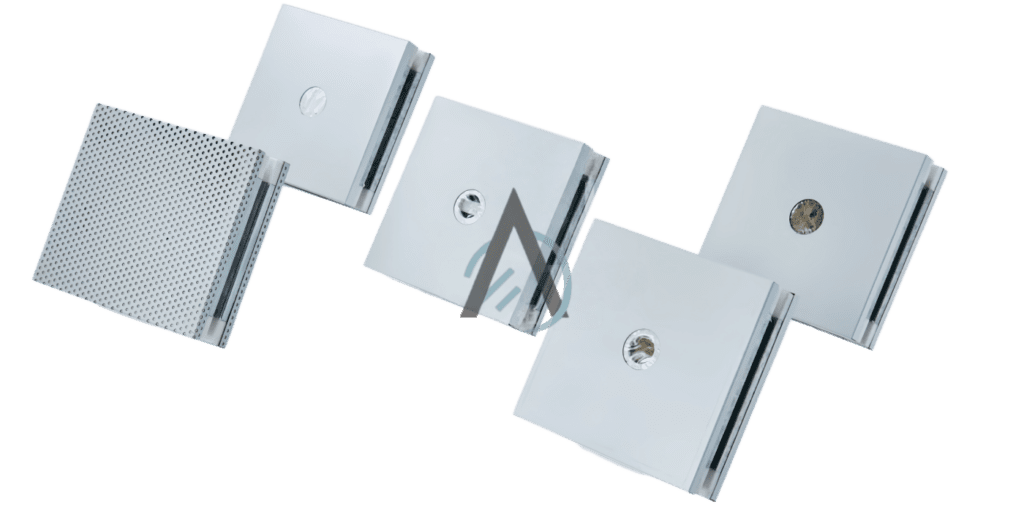

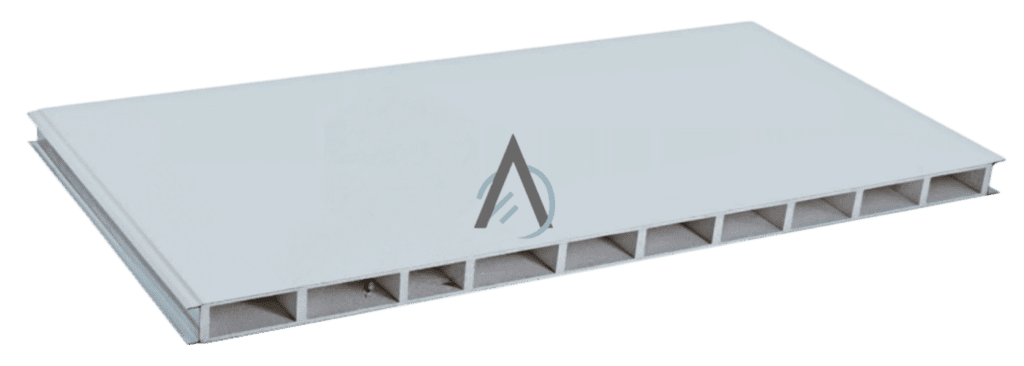

Core Material	MGO / MGO Rock Wool / EPS / PU / MOS
Core Density	Rock Wool60 – 140 kg/m³ MOS220 kg/m³ EPS30 – 35 kg/m³ PU35 kg/m³
Fire Rating	Rock Wool / MGO / MOS Grade A EPS B1 PU B1
Surface Types	Flat (Customizable molding or smooth finish)

FAQ

`Q1: How do I choose the right core material for different clean room environments?`

 A: Selection depends on your technical requirements: - High Fire Safety: Rock Wool (Class A fire rating, non-combustible)
- Moisture-Resistant Environments: Magnesium Oxide Board (MOB) — superior performance in high-humidity conditions
- High Precision / Electronics: Aluminum Honeycomb — extreme flatness (±0.5mm), anti-static compatible

`Q2: What certifications do your clean room materials hold?`

A: Products are manufactured under ISO 9001:2015 and SGS-verified for material purity and structural integrity.

`Q3: Is your system designed for flush-mount installation?`

 A: Yes. Wall and ceiling panels feature flush joints for smooth, seamless surfaces that minimize dust accumulation and simplify sanitization in controlled environments.

`Q4: Can I customize panel dimensions?`

 A: Yes. Custom lengths and thicknesses are available to match your facility layout. Standard production lead time is 15-20 working days.

Additional information

Brand	Aqua Route
Core Material	Rock Wool
Fire Rating	Class A
Melting Point	> 1000°C
Panel Thickness	50mm, 75mm, 100mm, 150mm
