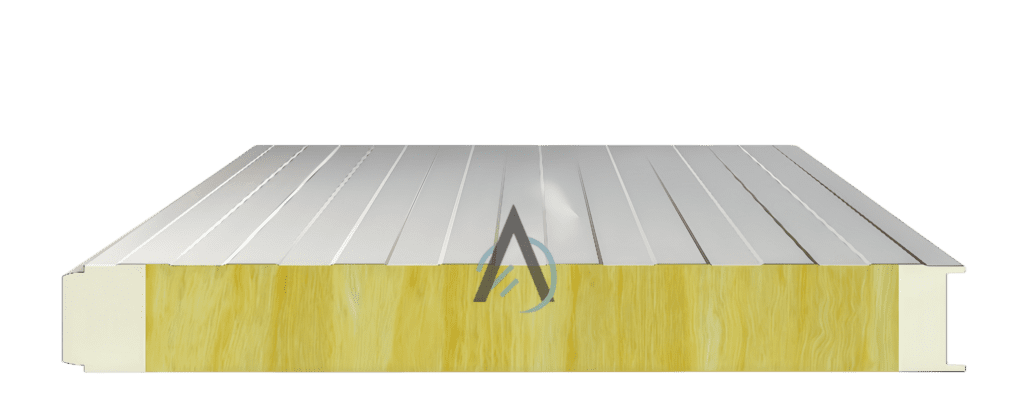

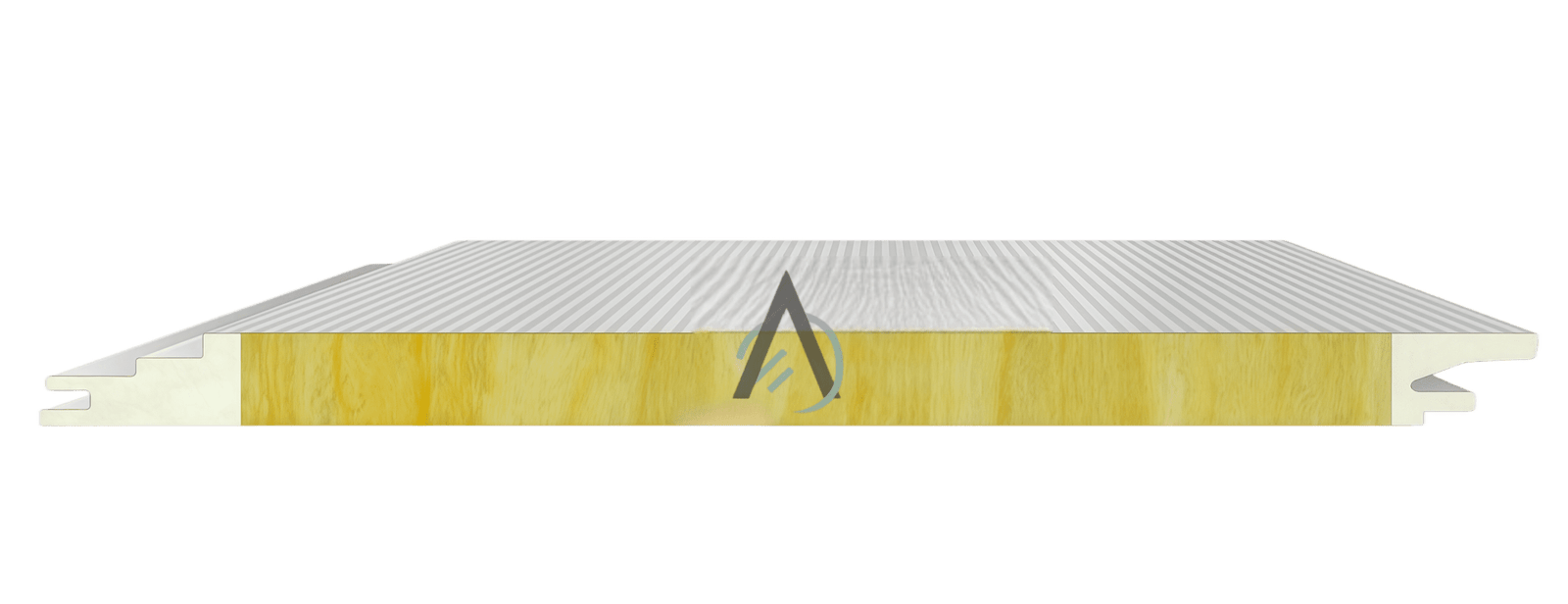

POLYURETHANE EDGE SEALING GLASS WOOL EXTERIOR WALL PANEL

Aqua Route Polyurethane Edge-Sealing Glass Wool Sandwich Panel combines the Class A non-combustible fire performance of glass wool core with the superior waterproofing, airtightness, and thermal bridge blocking of polyurethane edge sealing, delivering exceptional fire safety and energy efficiency. The glass wool core ensures outstanding fire resistance, sound insulation, and thermal stability, while polyurethane edges enhance overall insulation, moisture resistance, and durability, preventing core absorption and maintaining long-term performance.

Acoustic Precision Engineering: PU Edge-Sealed Glass Wool Panels for Airtight Exterior Facades

The Polyurethane Edge-Sealing Glass Wool Exterior Wall Panel integrates the lightweight acoustic properties of glass wool with the structural rigidity of precision-milled PU edge seals. This mission-critical solution is designed for high-risk industrial facilities requiring total airtightness and Class A fire protection in acoustically sensitive areas.

Core Competitive Advantages

PU Injected Edge-Sealing: Integrated polyurethane edges eliminate core moisture absorption and thermal bridging, ensuring 100% airtightness and consistent thermal performance.
Hybrid Fire Security: Features a Class A non-combustible glass wool core combined with flame-retardant PU edge seals, providing redundant safety layers for the building envelope.
Enhanced Sound Absorption: Engineered to neutralize industrial noise pollution, making it the preferred choice for pharmaceutical labs and high-precision workshops.
Hidden Fastening System: Features a hidden screw connection that ensures high wind-load resistance and a clean, seamless aesthetic finish across the facade.

Key Technical Specifications

Technical Parameter	Engineering Specification
Joint / Connection System	Hidden Screw Tongue & Groove System (Airtight)
Steel Skin Thickness Range	0.4 mm – 0.8 mm
Core Material & Density	PU Edge-Sealed Glass Wool (Core ≥ 64-80 kg/m³)
Exterior Metal Coating	PE / SMP / HDP / PVDF
Effective Width	1000 mm

Optimize your facility’s acoustic and thermal performance. Contact our engineering team for technical configurations.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.4–0.8 mm Aluminum 0.6–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Glass Wool ≥ 64 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) Glass Wool: 0.32–0.44 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Grade A
Surface Types	Wide Ripplet · Ripplet · Embossed

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Exterior Wall Panel
Insulation Core	Glass Wool
Edge Seal	Polyurethane
Fire Rating	Class A
