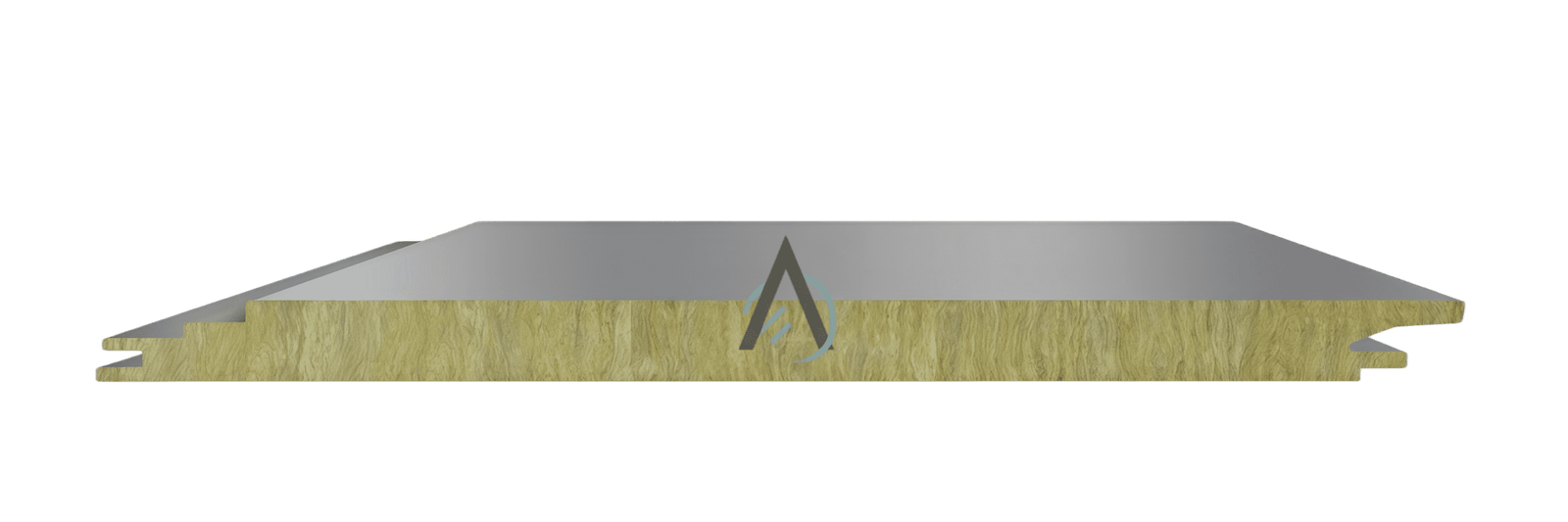

ROCK WOOL EXTERIOR WALL PANEL

Aqua Route Rockwool Exterior Wall Sandwich Panel features a high-density rockwool core bonded between durable metal facings, specifically engineered for countries and regions with stringent building fire safety requirements. The rockwool core, with a melting point over 1000°C, delivers top-tier Class A non-combustible fire performance—no burning, no toxic smoke, no dripping—effectively blocking flame spread and achieving superior fire resistance (up to EI 60-240 minutes depending on thickness), while offering excellent thermal insulation, soundproofing, and long-term durability for enhanced building safety and energy efficiency.

Class A Fire-Secure Facade: High-Density Rock Wool Exterior Panels for Safety-First Enclosures

The Rock Wool Exterior Wall Panel is a mission-critical enclosure solution engineered for facilities with stringent fire safety requirements. Composed of a non-combustible mineral core with a melting point above 1000°C, this panel provides high-density sound insulation and structural stability while maintaining a modern, fastener-free appearance.

Core Competitive Advantages

Class A Fire Integrity: Features a top-tier non-combustible rock wool core that effectively blocks flame spread and withstands temperatures exceeding 1000°C.
Hidden Screw Structural Design: Combines rigorous fire safety with a hidden screw tongue and groove system for an airtight, seamless exterior wall transition.
Heavy-Duty Core Rigidity: Utilizes high-density mineral rock wool (≥ 100-120 kg/m³) to ensure long-term structural integrity and high load-bearing capacity.
Sound Insulation Performance: Specifically engineered to dampen industrial noise, creating a controlled, acoustically stable environment for large-scale production facilities.

Key Technical Specifications

Technical Parameter	Engineering Specification
Joint / Connection System	Hidden Screw Tongue & Groove System
Steel Skin Thickness Range	0.4 mm – 0.8 mm
Core Material & Density	High-Density Rock Wool (≥ 100-120 kg/m³)
Exterior Metal Coating	PE / SMP / HDP / PVDF
Effective Width	1000 mm
Structural Benefit	Seamless architectural aesthetics with enhanced wind-load resistance

Secure your industrial assets with fire-rated exterior engineering. Contact our engineering team for site-specific layouts and factory pricing.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.4–0.8 mm Aluminum 0.6–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Glass Wool ≥ 64 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) Glass Wool: 0.32–0.44 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Grade A
Surface Types	Wide Ripplet · Ripplet · Embossed

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Exterior Wall Panel
Insulation Core	Rock Wool
Fire Rating	Class A, EI 60-240 min
Melting Point	> 1000°C
