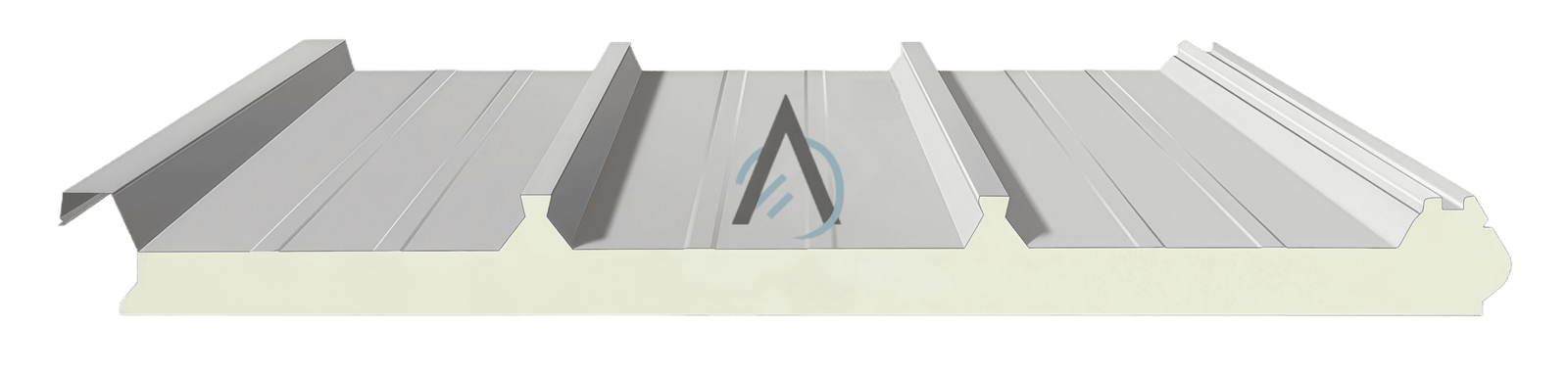

POLYURETHANE PHOTOVOLTAIC ROOF PANEL

Aqua Route Polyurethane Photovoltaic Roof Panel builds on a high-density polyurethane (PUR/PIR) foam core with durable metal facings and integrated photovoltaic modules, delivering exceptional thermal insulation, waterproof structural strength, and solar power generation. The closed-cell core ensures high energy efficiency and moisture resistance, enabling direct PV module mounting for building-integrated photovoltaics (BIPV), combining roofing protection with clean renewable energy production for sustainable green buildings.

SKU: AR-ROOF-PV-PU-01 Categories: Metal Enclosure System, Roof Panel Tags: BIPV roofing panel, building-integrated photovoltaics, green building roof panel, polyurethane PV roof panel, PUR solar roofing, solar integrated roof panel

Strategic BIPV Integration: High-Load Capacity Polyurethane Photovoltaic Roof Panels

The Polyurethane Photovoltaic Roof Panel is a Building-Integrated Photovoltaic (BIPV) solution that combines high-density thermal insulation with sustainable energy production. Engineered to support streamlined PV module integration, this system provides a leak-proof structural barrier for industrial roofs while facilitating carbon-neutral power generation via its high-density PUR/PIR core.

Core Competitive Advantages

Universal PV Compatibility: Specifically designed for clamp-free photovoltaic installation, ensuring rapid solar deployment without compromising the roof’s structural integrity.
Continuous Automated Foaming: Fabricated via an industrial-grade continuous production line ensures uniform core density and superior bonding between the PV-ready skin and the insulation.
High-Density Thermal Shield: Features a low-thermal conductivity PUR/PIR core that minimizes heat transfer, drastically reducing HVAC energy consumption in logistics hubs.
High-Rib Overlapping System: Engineered with a 35mm 3-rib profile and waterproof caps to ensure lightning-fast water runoff even under high-load PV arrays.

Key Technical Specifications

Technical Parameter	Engineering Specification
Panel Connection	High-Rib Overlapping System with Waterproof Caps
Rib Height / Profile	35 mm (3-Rib Profile)
Effective Width	1000 mm
Steel Skin Thickness Range	0.4 mm – 0.8 mm
Exterior Metal Coating	PE / SMP / HDP / PVDF
PV Mounting Compatibility	Universal Al-Fixture Ready (Clamp-Free Installation)

Transform your industrial roof into a precision energy asset. Contact our engineering team for a BIPV technical consultation and factory quote.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.5–0.8 mm Aluminum 0.7–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Polyurethane ≥ 40/45 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) PIR: ≤ 0.22 W/(m·K) PUR: 0.22–0.26 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Rock Wool: Grade A Polyurethane: Grade B

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Photovoltaic Roof Panel
Insulation Core	PUR/PIR
Integration	BIPV (Building Integrated Photovoltaics)
