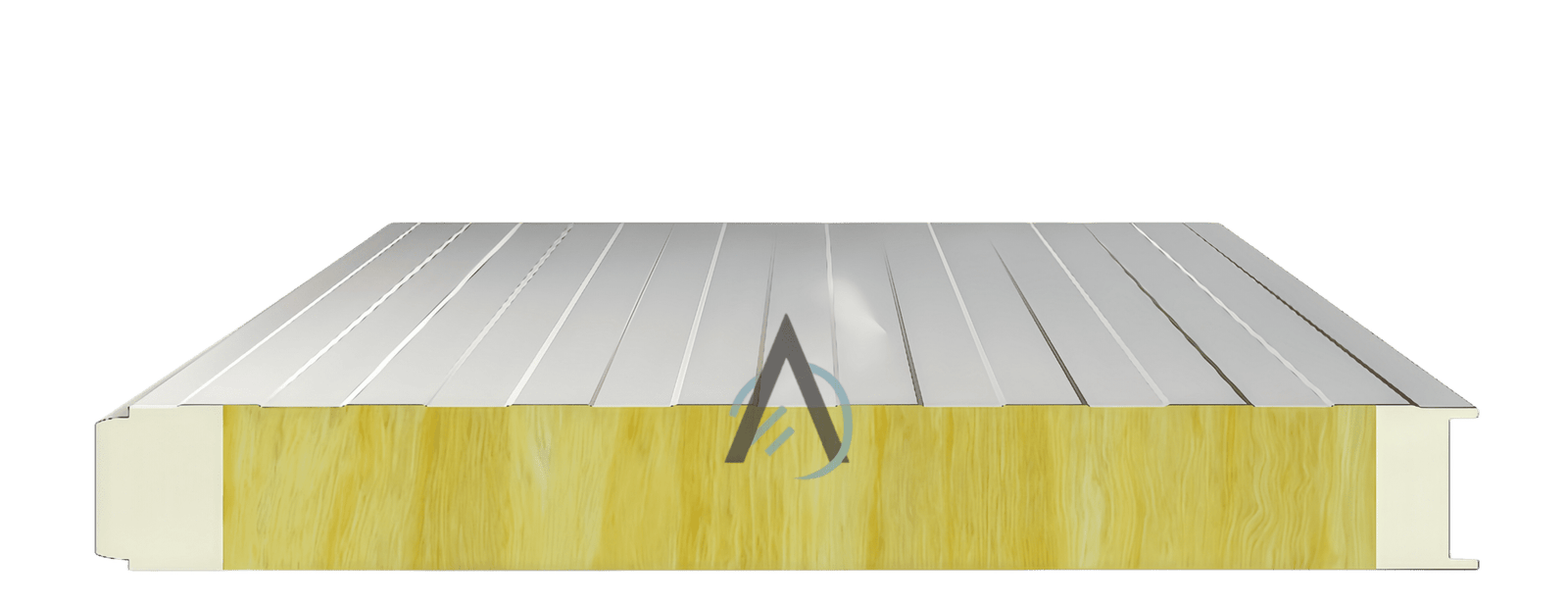

POLYURETHANE EDGE SEALING GLASS WOOL INNER WALL PANEL

Aqua Route Polyurethane Edge-Sealing Glass Wool Interior Wall Panel combines the Class A non-combustible fire performance of glass wool core with the superior waterproofing, airtightness, and thermal bridge blocking of polyurethane edge sealing, tailored for interior partitioning. The glass wool core delivers outstanding fire resistance, sound absorption, and thermal stability, while polyurethane edges enhance overall insulation, moisture resistance, and durability, preventing core absorption for a comfortable, stable indoor environment and reliable long-term performance.

Acoustic Precision: Flat-Surface PU Edge-Sealed Glass Wool Panels for Interior Partitioning

The Polyurethane Edge-Sealing Glass Wool Interior Wall Panel is a high-performance partitioning solution that combines Class A non-combustible fire protection with specialized sound absorption. Engineered with precision-milled PU edges to eliminate moisture absorption, this system provides a stable, airtight barrier for modern cleanrooms and controlled industrial environments.

Core Competitive Advantages

Superior Sound Absorption: The high-density glass wool core is specifically designed to dampen industrial noise, making it the preferred choice for pharmaceutical and electronics facilities.
Airtight PU Edge-Sealing: Integrated polyurethane edges create a total moisture barrier and block thermal bridging, ensuring 100% core integrity throughout the building lifecycle.
Seamless Aesthetic Finish: Features a flat or micro-ribbed external surface profile that facilitates easy cleaning and meets strict hygiene standards in controlled environments.
Mission-Critical Fire Safety: Delivers Class A non-combustible performance, providing essential protection for internal partitions in hazardous or high-value manufacturing zones.

Key Technical Specifications

Technical Parameter	Engineering Specification
Joint / Connection System	Hidden Screw Tongue & Groove (Seamless Visual)
Steel Skin Thickness Range	0.4 mm – 0.8 mm
External Surface Profile	Flat (纯平) / Micro-Ribbed (小波纹)
Core Material & Density	Glass Wool Core (Density ≥ 64-80 kg/m³)
Exterior Metal Coating	PE / PVDF / HDP (High Durability Polyester)
Fire Safety Rating	Class A Non-Combustible

Optimize your internal environment with high-density acoustic solutions. Contact our engineering team for a technical consultation and factory quote.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.4–0.8 mm Aluminum 0.6–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm · 180 mm · 200 mm
Effective Width	1,130 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Glass Wool ≥ 64 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) Glass Wool: 0.32–0.44 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Grade A
Surface Types	Wide Ripplet · Ripplet · Embossed

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Interior Wall Panel
Insulation Core	Glass Wool
Edge Seal	Polyurethane
Fire Rating	Class A
Feature	Sound Absorption
