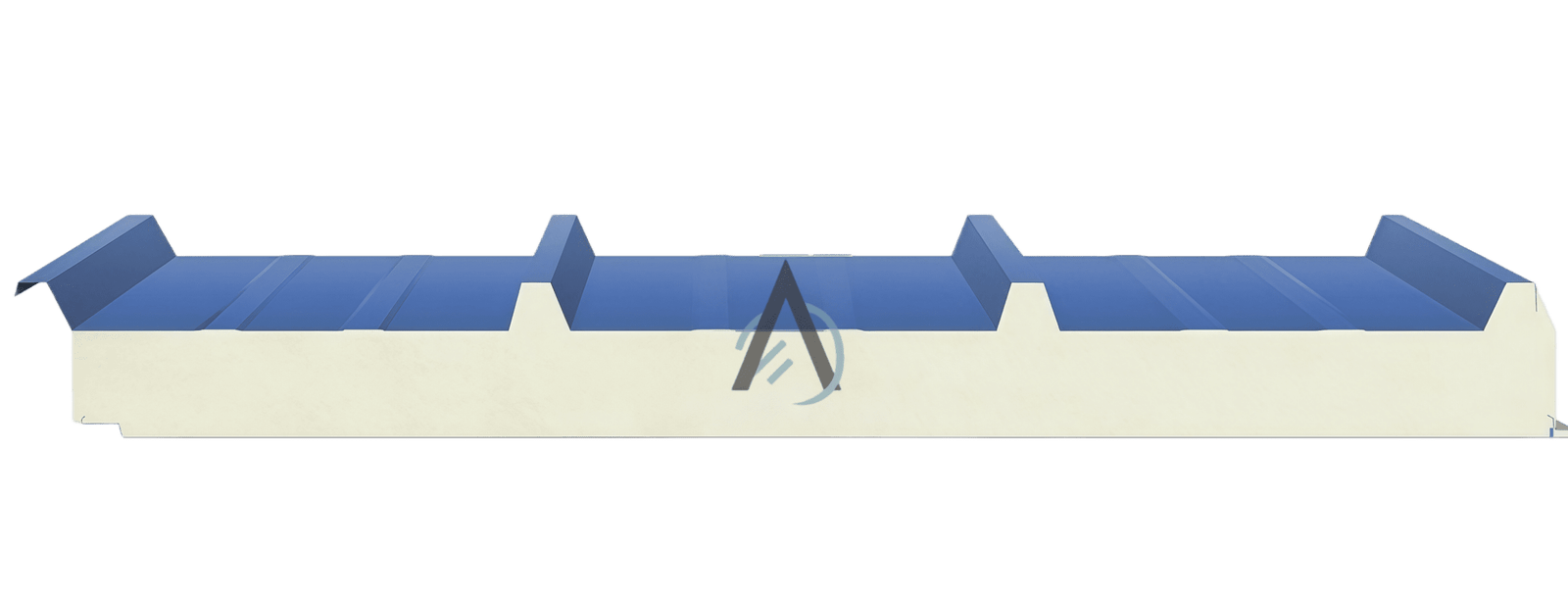

POLYURETHANE ROOF PANEL

Aqua Route Polyurethane Roof Sandwich Panel features a high-density rigid polyurethane (PUR/PIR) foam core bonded between durable metal facings, offering superior thermal insulation, low thermal conductivity, and excellent waterproofing. The closed-cell core ensures strong airtightness and moisture resistance, paired with corrugated or trapezoidal roofing profiles for efficient drainage, lightweight strength, and fast installation—ideal for industrial plants, warehouses, and commercial building roofs.

High-Throughput Drainage: Weather-Proof Polyurethane Roof Panels for Industrial Enclosures

The Polyurethane Roof Sandwich Panel is a high-performance enclosure solution designed for industrial plants and warehouses requiring rapid water drainage and maximum thermal resistance. Utilizing high-ribbed profiles and a low-conductivity PUR/PIR core, this system ensures a durable, leak-proof roof that reduces building energy consumption.

Core Competitive Advantages

3-Rib High Drainage Profile: Specifically engineered with a 35mm rib height to facilitate rapid stormwater runoff and prevent standing water penetration in extreme weather.
Closed-Cell Thermal Protection: Features a high-density, closed-cell PUR/PIR core (98%+ closed-cell ratio) that maintains consistent thermal integrity and moisture resistance.
Steel Skin Resilience: Available in varying skin thicknesses and high-durability coatings to withstand corrosive industrial atmospheres and long-term UV exposure.
Precision Automation: Manufactured on a continuous automated production line to ensure perfectly uniform plate flatness and high-strength metallic bonding.

Key Technical Specifications

Technical Parameter	Engineering Specification
Panel Connection	High-Rib Overlapping System with Waterproof Caps
Rib Height / Profile	35 mm (3-Rib Profile)
Effective Width	1000 mm
Steel Skin Thickness Range	0.4 mm – 0.8 mm
Exterior Metal Coating	PE / SMP / HDP / PVDF
Manufacturing Process	Continuous Automated High-Pressure Foaming

Ensure absolute leak-proof protection for your industrial assets. Contact our engineering team for a factory-direct technical layout.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.5–0.8 mm Aluminum 0.7–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Polyurethane ≥ 40/45 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) PIR: ≤ 0.22 W/(m·K) PUR: 0.22–0.26 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Rock Wool: Grade A Polyurethane: Grade B

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Roof Sandwich Panel
Insulation Core	PUR/PIR
Profile	Corrugated, Trapezoidal
Application	Industrial Plants, Warehouses
