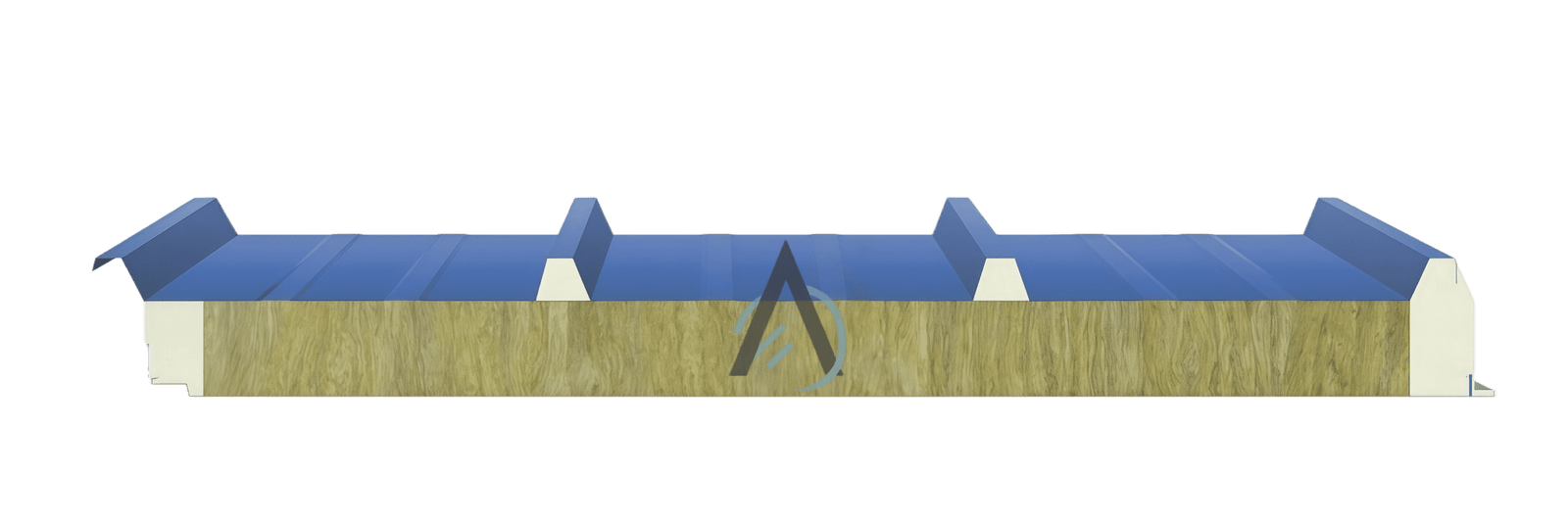

POLYURETHANE EDGE SEALING ROCK WOOL ROOF PANEL

Aqua Route Polyurethane Edge-Sealing Rockwool Roof Sandwich Panel combines the Class A non-combustible fire performance of rockwool core with the superior waterproofing, airtightness, and thermal bridge blocking of polyurethane edge sealing, engineered specifically for roofing systems. The rockwool core delivers outstanding fire resistance, sound insulation, and thermal stability, while polyurethane edges enhance overall insulation, moisture resistance, and durability, preventing core absorption for long-term leak-proof performance and structural integrity.

SKU: AR-ROOF-RW-01 Categories: Metal Enclosure System, Roof Panel Tags: Class A roof sandwich panel, fire-resistant roofing, insulated roof cladding, polyurethane edge roof panel, rockwool roof panel

Class A Non-Combustible Roofing: PU Edge-Sealed Rock Wool Panels for Strategic Security

The Polyurethane Edge-Sealing Rock Wool Roof Panel combines the uncompromising fire resistance of rock wool with the precision weather-proofing of polyurethane edges. This advanced hybrid solution is designed for mission-critical industrial roofing where fire safety, acoustic dampening, and total moisture prevention must coexist.

Core Competitive Advantages

Hybrid Sealing Tech: Continuous PU edge injection eliminates moisture absorption common in traditional rock wool, ensuring the core remains dry and thermal performance stays stable.
Class A Fire Resilience: The mineral rock wool core provides a superior fire barrier, critical for hazardous material warehouses and chemical processing plants.
Concealed Fastening Engineering: Features a hidden screw joint system with weather-proof caps to provide a seamless appearance while maintaining maximum wind-load resistance.
Advanced Sound Insulation: Precision-engineered for industrial zones requiring low ambient noise levels, achieving high-decibel acoustic dampening.

Key Technical Specifications

Technical Parameter	Engineering Specification
Panel Connection	Hidden Screw Joint System with Weather-proof Caps
Rock Wool Core Density	High-Density Mineral Rock Wool (≥ 100-120 kg/m³)
Fire Resistance Rating	Class A Non-Combustible (1000°C+ Melting Point)
Acoustic Performance	Sound Insulation Index ≥ 30 dB
Effective Width	1000 mm
Edge Protection	Automated Polyurethane (PU) Injected Sealing

Upgrade your facility with fire-secure and acoustically-stable roofing. Contact our engineering team for factory-direct rock wool specifications.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.5–0.8 mm Aluminum 0.7–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Polyurethane ≥ 40/45 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) PIR: ≤ 0.22 W/(m·K) PUR: 0.22–0.26 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Rock Wool: Grade A Polyurethane: Grade B

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Roof Sandwich Panel
Insulation Core	Rock Wool
Edge Seal	Polyurethane
Fire Rating	Class A
