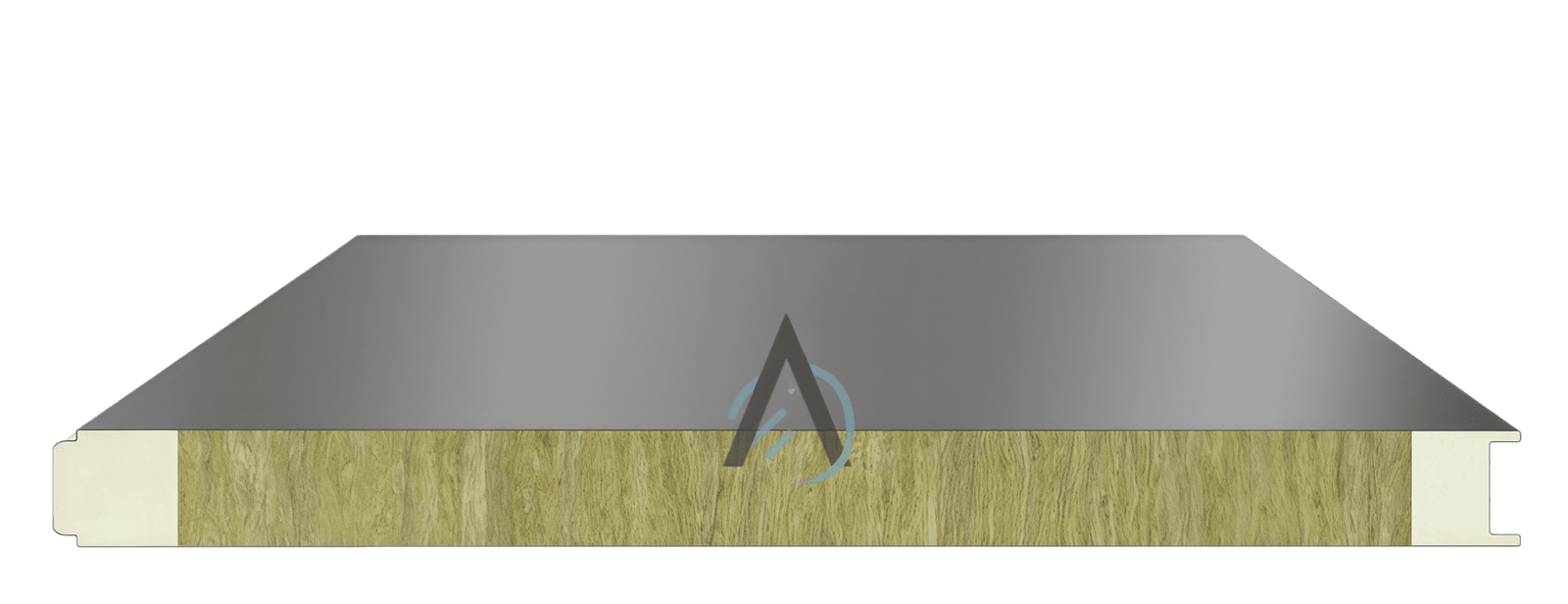

POLYURETHANE EDGE SEALING ROCK WOOL INNER WALL PANEL

Aqua Route Polyurethane Edge-Sealing Rockwool Interior Wall Panel combines the Class A non-combustible fire performance of rockwool core with the superior waterproofing, airtightness, and thermal bridge blocking of polyurethane edge sealing, tailored for interior partitioning. The rockwool core delivers outstanding fire resistance, sound insulation, and thermal stability, while polyurethane edges enhance overall insulation, moisture resistance, and durability, preventing core absorption for a comfortable, stable indoor environment and reliable long-term performance.

Seamless Fire Barrier: High-Density PU Edge-Sealed Rock Wool Panels for Interior Enclosures

The Polyurethane Edge-Sealing Rock Wool Interior Wall Panel integrates the uncompromising fire resistance of mineral rock wool with high-efficiency airtight joint technology. This mission-critical solution is designed for industrial facility enclosures where maximum fire safety, structural stability, and thermal bridge elimination are non-negotiable.

Core Competitive Advantages

Total Fire Integrity: Engineered with a high-melting-point rock wool core that meets Class A fire safety ratings, essential for protecting internal production lines and inventory.
High-Density Structural Shield: Features an industrial-grade mineral core (≥ 100-120 kg/m³) for enhanced structural rigidity and load-bearing partition performance.
Hidden Screw Joint System: Utilizes an advanced interlocking design to ensure airtight sealing and a smooth, fastener-free appearance for cleanroom maintenance.
Precision PU Sealing: Continuous polyurethane edge injection prevents common rock wool absorption issues, maintaining a consistent thermal barrier in humidity-controlled zones.

Key Technical Specifications

Technical Parameter	Engineering Specification
Joint / Connection System	Hidden Screw Tongue & Groove (High-Airtightness)
Steel Skin Thickness Range	0.4 mm – 0.8 mm
External Surface Profile	Flat (纯平) / Micro-Ribbed (小波纹)
Core Material & Density	High-Density Rock Wool (≥ 100-120 kg/m³)
Exterior Metal Coating	PE / PVDF / HDP
Structural Benefit	Hidden-fix structural aesthetics with maximum wind-load resistance

Secure your industrial enclosure with precision-milled fire barriers. Contact our engineering team for site-specific layouts and factory pricing.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.4–0.8 mm Aluminum 0.6–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm · 180 mm · 200 mm
Effective Width	1,130 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Glass Wool ≥ 64 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) Glass Wool: 0.32–0.44 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Grade A
Surface Types	Wide Ripplet · Ripplet · Embossed

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Interior Wall Panel
Insulation Core	Rock Wool
Edge Seal	Polyurethane
Fire Rating	Class A
