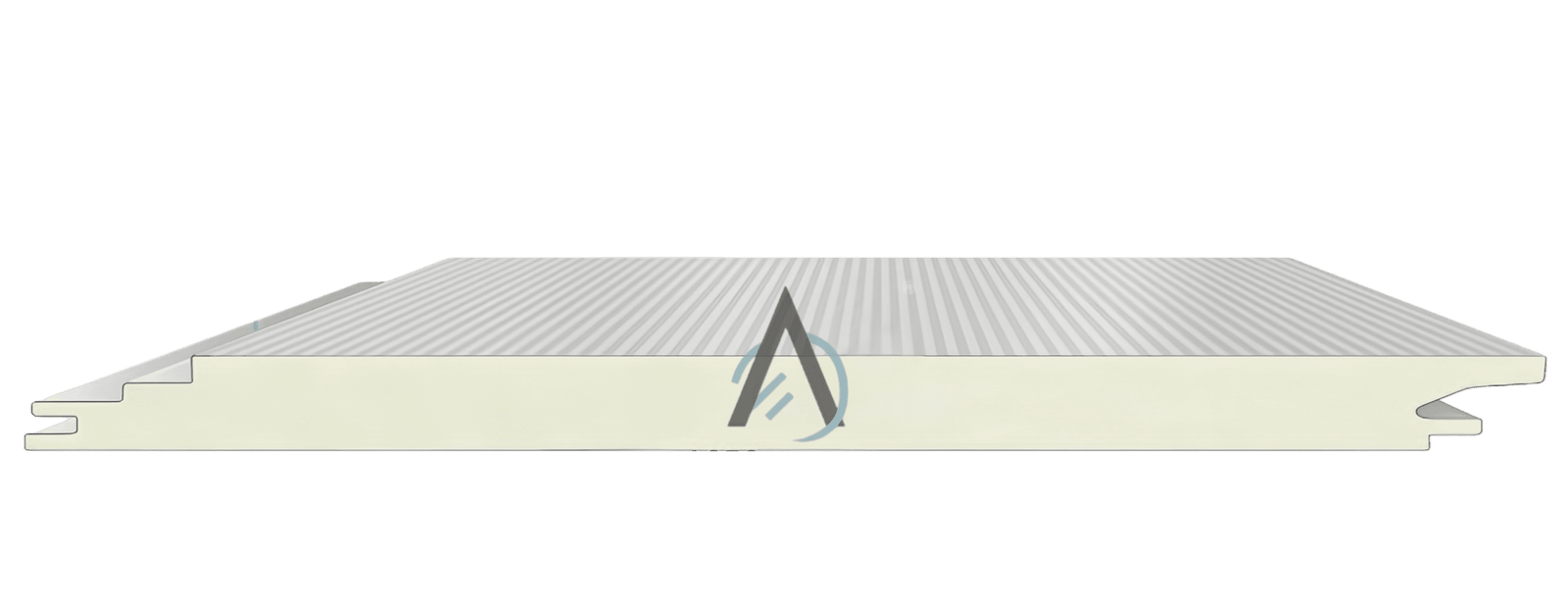

POLYURETHANE EXTERIOR WALL PANEL

Aqua Route Polyurethane Sandwich Panel features a high-density rigid polyurethane (PUR/PIR) foam core bonded between durable metal facings, delivering superior thermal insulation, low thermal conductivity, and excellent structural strength. The closed-cell core provides outstanding waterproofing, moisture resistance, airtightness, and enhanced fire performance (superior in PIR variants), ensuring energy efficiency and long-term durability. Ideal for industrial buildings, exterior walls, roofing, and cold chain facilities, with lightweight design and easy installation.

Thermal Bridge Elimination: High-Density Polyurethane Exterior Panels with Hidden Fastening

The Polyurethane Exterior Wall Panel is a high-performance building envelope solution designed for industrial plants and cold storage facilities requiring maximum thermal resistance and a fastener-free aesthetic. Engineered with a low-conductivity PUR/PIR core and hidden-fix tongue and groove joints, this system eliminates thermal bridges while providing a seamless, durable facade.

Core Competitive Advantages

Architectural Seamless Aesthetics: Utilizes a hidden screw joint system that conceals all fasteners, delivering a smooth, high-end visual finish for modern industrial architecture.
High-Density Structural Core: Features an industrial-grade rigid core (≥ 40-42 kg/m³) that ensures consistent thermal integrity and high wind-load resistance.
Total Thermal Isolation: The recessed joint design combined with precision-milled edges creates an airtight barrier, drastically reducing building energy loss and condensation risk.
Advanced Coating Resilience: Protected by high-durability exterior metal coatings (PVDF/HDP) to withstand extreme UV exposure and harsh industrial environments.

Key Technical Specifications

Technical Parameter	Engineering Specification
Joint / Connection System	Hidden Screw Tongue & Groove System
Steel Skin Thickness Range	0.4 mm – 0.8 mm
Core Material & Density	PUR/PIR Core (Density ≥ 40-42 kg/m³)
Exterior Metal Coating	PE / SMP / HDP / PVDF
Effective Width	1000 mm

Optimize your facility’s energy footprint and facade aesthetics. Contact our engineering team for a technical consultation and factory quote.

Technical Specs

Aqua Route — Factory Direct Technical Specification
Parameter	Specification
Surface Material	Steel / Aluminum
Surface Thickness	Steel 0.4–0.8 mm Aluminum 0.6–1.0 mm
Panel Thickness	50 mm · 75 mm · 100 mm · 120 mm · 150 mm
Effective Width	1,000 mm
Length	Customizable
Core Density	Rock Wool ≥ 100 kg/m³ Glass Wool ≥ 64 kg/m³
Thermal Conductivity	Rock Wool: 0.34–0.40 W/(m·K) Glass Wool: 0.32–0.44 W/(m·K) Specifically calculated based on density and thickness.
Fire Rating	Grade A
Surface Types	Wide Ripplet · Ripplet · Embossed

FAQ

`Q1: What are the main materials used in your metal enclosure systems?`

 Our metal enclosure systems use sandwich panels with cores of Rock Wool (Class A fire resistance) or PIR/PUR (superior thermal insulation), with galvanized or pre-painted steel facings. Standard effective width is 1000mm for mechanically produced panels. Panels are available for exterior wall and roof applications in industrial and commercial buildings.

`Q2: Can I customize the dimensions and colors of the panels?`

 Yes. We offer full OEM/ODM customization — specify lengths up to 12m, core thickness, and color from the RAL chart. Custom colors require a minimum of 2,000 m² per order.

`Q3: What fire safety certifications do your enclosure panels hold?`

 Our panels carry ISO 9001:2015, CE marking, and SGS third-party verification. We provide fire resistance ratings and thermal conductivity test reports on request.

`Q4: Do you provide installation support for large-scale enclosure projects?`

 We provide installation manuals and video tutorials. For major industrial projects, engineers can be dispatched for on-site technical guidance (client covers travel expenses)

`Q5: What is the standard lead time for a bulk order?`

 Production takes 15-20 working days. Sea freight adds 20-35 days depending on destination port. Rush production (10-12 days) is available for time-sensitive orders.

Additional information

Brand	Aqua Route
Product Type	Exterior Wall Panel
Insulation Core	PUR/PIR
Feature	Waterproofing, Airtightness
